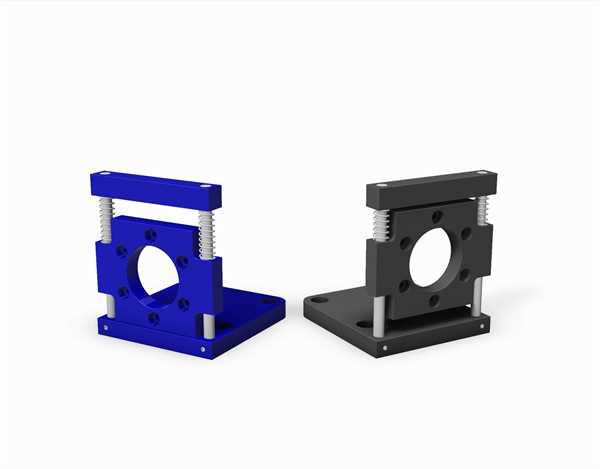

Angular Flanges with pressure spring for Encoder WF58

Preview: Angular Flanges with pressure spring for Encoder WF58 Preview: Angular Flanges with pressure spring for Encoder WF58
Angular Flanges with pressure spring for Encoder WF58
Angular Flanges with pressure spring for Encoder WF58


Zum Konfigurieren dieses Artikels benutzen Sie bitte das Datenblatt:

get a quote

  • Order number: WF58
Description Datasheet CAD
Description
Angular Flanges - backlash compensated WF58 Features: gentle application due to the... more
Close menu
Product information "Angular Flanges with pressure spring for Encoder WF58"
Angular Flanges - backlash compensated WF58

Features:
gentle application due to the backlash compensated bearing for the encoder
suitable for encoders with D: 58 mm
less slippage due to the correct pressure in combination with the suitable measuring wheel
precise linear measurement due to low backlash between measuring pinion and gear rack
further mechanical interfaces on request
