Measuring wheels 100 mm circumference
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
- Order number: MR-100
• Very good concentricity
• High measuring accuracy
• Reduced mass through... more
Product information "Measuring wheels 100 mm circumference"
• Very good concentricity
• High measuring accuracy
• Reduced mass through optimized design
• Optimal wear values under mechanically high loads
• High resistance to oils, fuels, ozone, and weather influences
Related links to "Measuring wheels 100 mm circumference"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Measuring wheels 100 mm circumference"
| Circumference | 100 mm |
| Diameter | 31,83 mm |
| Material Corpus Surface |
Aluminium Rubber |
| Weight Aluminium Plastic |
ca. 20 g - |
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Measuring wheels 100 mm circumference"
| Circumference | Ø [D] in mm | Width [B] in mm | Width [b] in mm | Drilling-Ø [d] in mm |
| 100 mm | 31.83 | 3.5 | 12 | 3; 4; 5; 6 |
| 200 mm | 63.66 | 12 | 17 | 4; 5; 6; 7; 8; 10 |
| 12 Inch | 97.02 | 10 | 19 | 4; 6; 7; 8; 9.52; 10; 12 |
| 500 mm | 159.15 | 25 | 32 | 6; 7; 8; 10; 12 |
| 1000 mm | 318.31 | 26.5 | 40 | 7; 8; 10; 12 |
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Measuring wheels 100 mm circumference"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Measuring wheels 100 mm circumference"
CAD-File: Please request
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...

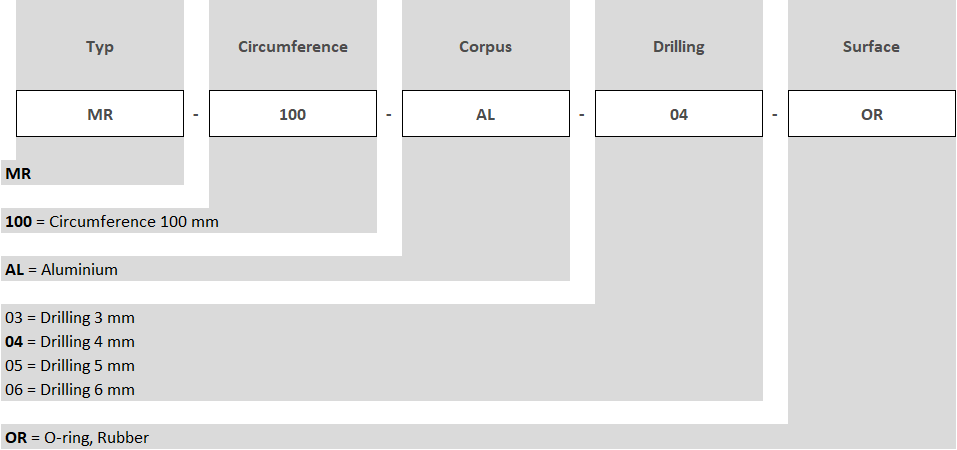

Ordercode "Measuring wheels 100 mm circumference"
Passendes ZubehörPassendes Zubehör anfragen ...
Accessories "Measuring wheels 100 mm circumference"
