Electronic meter counter Light Short U-profile guidance

Our ordering example:

Measuring wheel:

200 mm circumference, 25 mm width
Smooth running surface

Display: Direct display F8P in mounting housing

6 digit display
Battery operated
Profile guidance: U-profile, 40 mm wide incl. passage guide (guide sleeve Ø 20 mm)
Flange clamp connector for round tube Ø 18 mm
Resolution programmable

- Item number: 30255

You want to customize the article to your needs? Here you get to our configurator article.

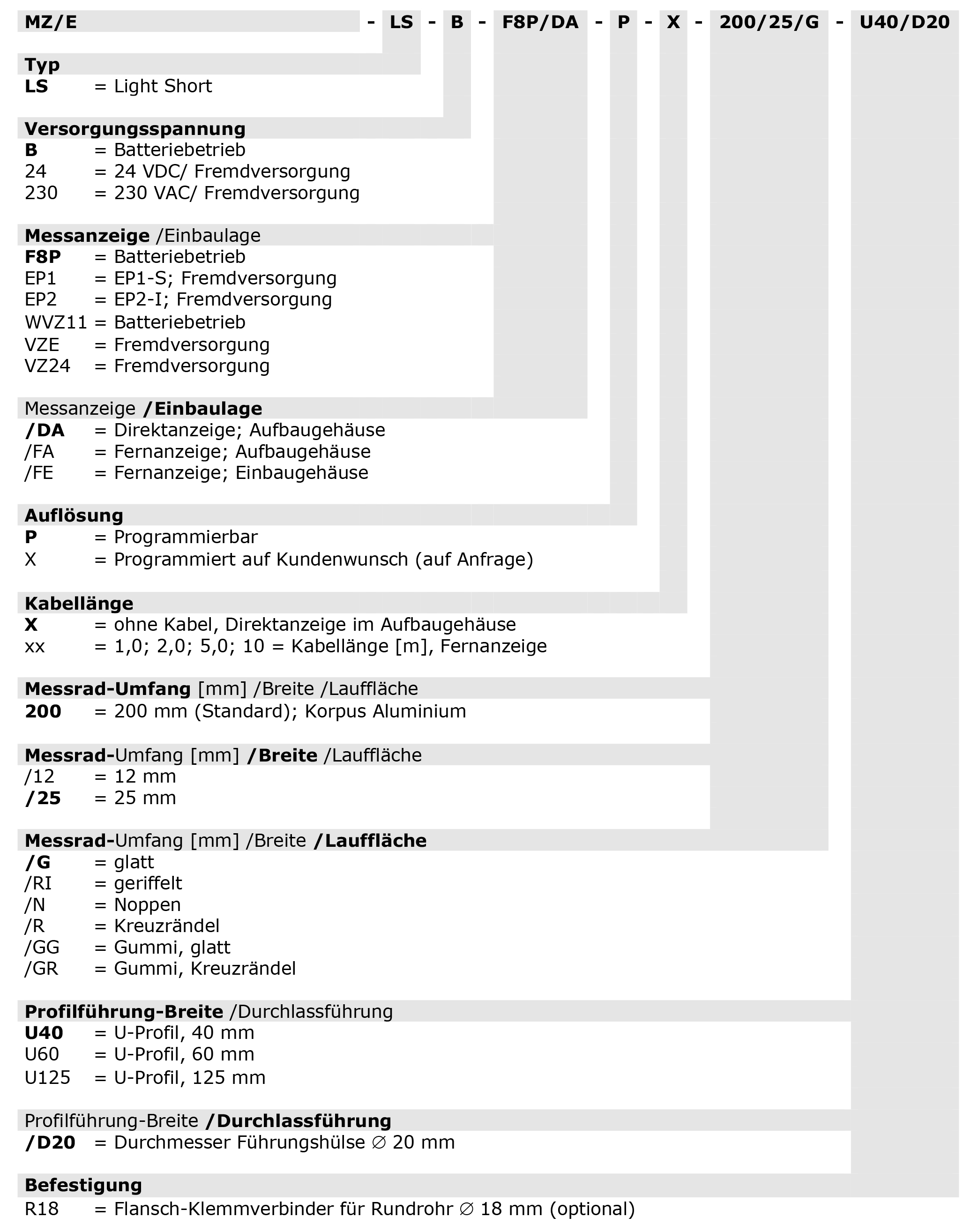

Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:

Any questions?

Your Contact

Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17

get a quote

Order number: 30255

The electronic meter counters of the MZ/E-Light series Light Short U-profile guidance are... more

Close menu

Product information "Electronic meter counter Light Short U-profile guidance"

The electronic meter counters of the MZ/E-Light series Light Short U-profile guidance are characterized by flexibility for the benefit of the user.

Individual adaptation possibilities through different measuring wheel sizes with programmable measuring display offer numerous applications in various machine industries.

Characteristics at a glance

Electronic length measuring system including electronic measuring display in a modular design.
Measurement of linear movements directly on the surface of running materials.
Measurement is performed by a measuring wheel with a circumference of 200 mm.
Incremental magnetic sensor or magnetic ring for rotary distance measurement (length).
Robust design with easy replacement of the measuring wheels.
Programmable measuring display: counting direction, change between incremental and absolute measurement, scaling factor adjustable, changeable units / resolution, conversion from cm to inch.
Supply battery-powered or with external power supply.
Measuring display directly attached or externally in an installation or mounting housing.
Integrated spring for permanent pressure of the measuring wheel on the surface, guarantees slipfree measurement.
U-profile-guidance with guiding sleeve or module for adjusting the width of the lead-through.
Uniform support and precise guidance of the materials.
