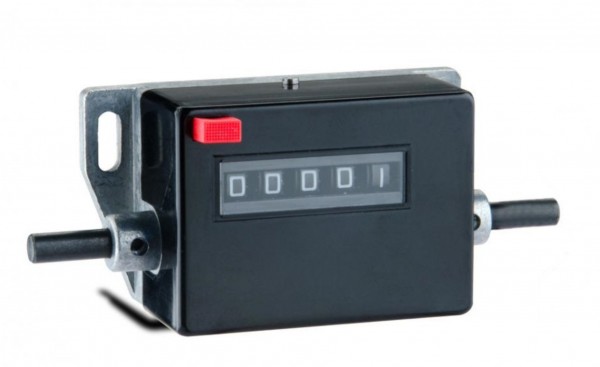

Mechanical meter counter M30

Mechanical meter counter M30

Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:

We´re here to help.

Christian_Willmann

Your contact

Christian Willmann
c.willmann@willtec.de
07665 - 93465-17

get a quote

  • Order number: MZM-M30
Description Technical data Drawing Datasheet CAD Ordercode Accessories
Description
Hoses, tapes, cables - mechanical meter counters from Willtec measurement technology provide the... more
Close menu
Product information "Mechanical meter counter M30"

Hoses, tapes, cables - mechanical meter counters from Willtec measurement technology provide the user with a simple and cost-effective way to measure the length of continuous materials. The M30 series mechanical meter counters are compact and cost-effective.

Related links to "Mechanical meter counter M30"
technicaldata
Technische Daten anfordern ...Technische Daten anfordern ...
Close menu
Technical data "Mechanical meter counter M30"



Mechanical data

Material (Housing) Plastic, fiberglass reinforced
Weight approx. 110 g (w/o accessories)
Shaft diameter d=6 mm
Display 5 digits
Digit height 4,5 mm
Counting direction

right or

left
Pitch 1 revolution = 2; 20
Counting speed Max. 1000 numbers/min
Measuring range 0-9999,9 m
Resolution 0,1 m oder 0,01 m
Zeroing optional





drawings
Zeichnung anfordern ...Zeichnung anfordern ...
Close menu
Drawing "Mechanical meter counter M30"







Datenblatt
Datenblatt anfordern ...Datenblatt anfordern ...
Close menu
Get Datasheet files for "Mechanical meter counter M30"



Datasheet: Please request





CAD
CAD Daten anfordern ...CAD Daten anfordern ...
Close menu
Get CAD files for "Mechanical meter counter M30"



CAD-Data: Please request





ordercode
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...
Close menu
Ordercode "Mechanical meter counter M30"



BS_MZ-M30_EN





accessories
Passendes ZubehörPassendes Zubehör anfragen ...
Close menu
Accessories "Mechanical meter counter M30"



 Available measuring wheels
MR-200
