Order number: P1X

P1X is a single-axis positioner controled by a programmable microprocessor with relay... more

Close menu

Product information "P1X - Digital Display"

P1X is a single-axis positioner controled by a programmable microprocessor with relay or analogue outputs that process signals supplied by incremental encodes or magnetic sensors.

The opportunity to create customized working programmes makes the P1X extremely versatile.

Programmable parameterst to counterbalance system interia, backlash and wear of mechanical couplings
Memorisation of up to 99 positions
Easy programming of the parameters by front buttons

Related links to "P1X - Digital Display"

Technische Daten anfordern ...Technische Daten anfordern ...

Close menu

Technical data "P1X - Digital Display"

Power supply	115 VAC, 230 VAC, 24 VAC, 15-30 VDC, ±10%
Absorbed power	7 VA
Type of inputs	optoinsulated
Encoder and sensor input	Open collector NPN/PNP - Push-pull - Line driver
Maximum frequency	100 KHz
Operating modes	Semiautomatic/automatic, Absolute/relative, Line, Manual
Automatic test	Input/output
Working programmes	Memorization of 99 positions, Number of pieces,Repetitions
Analogue output	4-20 mA, 0-10 VDC, -10 +10 VDC
Serial output	RS232, RS485 ModBus RTU
Dimensions	72x144x162
Low tension	2014/35/UE
EMC	2014/30/UE

Do you have any questions concerning this product?

Zeichnung anfordern ...Zeichnung anfordern ...

Close menu

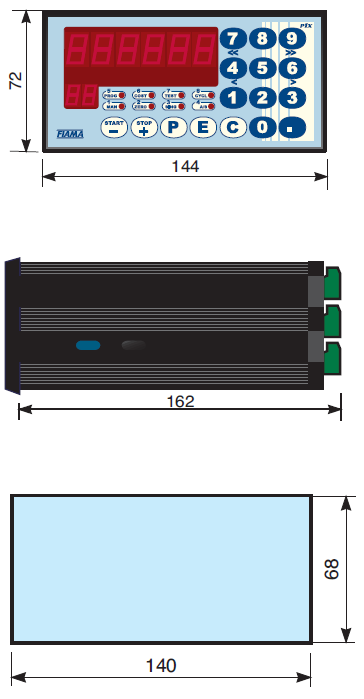

Drawing "P1X - Digital Display"

P1X_TZ
