Hand Wheel Position Indicator I80 - IN80
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: I80-IN80

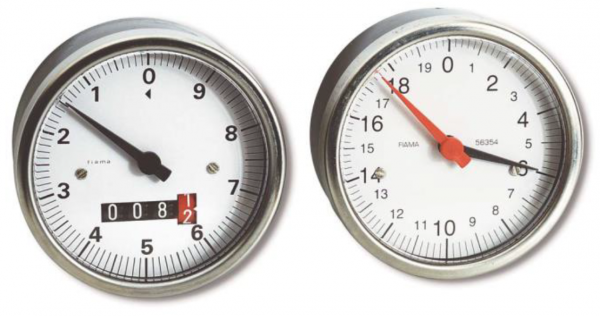

- Position Indicator with analogue scale (I80) or rather analogue-digital scale (IN80)
- Measurement of length and angle with gravity principle
- Window of shock-proof polycarbonate
- Available for several hand wheels
- IP-Rating: IP64
Mechanical Data
|
In General |
|
|
Material Case Window |
Metal or Technopolymer Shock-proof polycarbonate |
|
Counting Direction |
DX clockwise SX anti-clockwise |
|
Applications |
Suitable for horizontal with up to 30° inclined position of shaft |
|
Operating Temperature |
< 80°C |
|
IP-Rating |
IP64 |
|
Optional |
oil-filled on request |
|
Accessories Hand Wheel |
P90, P125, P140, P160 |
|
I80 |
|
|
Indication |
analogue dial scale |
|
Hand Big Hand Little Hand |
1:1 ratio with hand wheel Transmission Ratio depending on the required shaft revolution |
|
Transmission Ratio |
2:1 – 4:1 – 6:1 – 10:1 – 12:1 - 20:1 – 24:1 – 30:1 – 36:1 – 40:1 – 60:1 – 100:1 – 120:1 – 200:1 |
|
Dial Scale |
0-6; 0-10; 0-12; 10-0-10; 20-0-20; 0-24; 0-25; 0-30; 0-36; 0-40; 0-50; 0-60; 0-80; 0-100 |
|
IN80 |
|
|
Indication |
analogue-digital - dial scale, counter |
|
Hand Big Hand Little Hand |
|
|
Indication after 1 revolution |
000 1 – 000 2 – 000 4 – 000 5 – 000 6 – 000 8 – 00 10 – 001 5 – 002 0 – 002 5 – 003 0 – 004 0 – 005 0 – 006 0 |
|
Dial Scale Division |
0-10; 0-15; 0-20; 0-25; 0-30; 0-40; 0-50; 0-60; 0-80; 0-100 100 |
CAD-Files: Please request
