- Order number: SERVO.D
Complete system for axis control
Brushless motor with reducer and control with... more
Product information "SERVO.D - Positioning system - Positioning drive"
- Complete system for axis control
- Brushless motor with reducer and control with microprocessor of the driving motor built-in
- Position transducer
- Interface for field-bus
Related links to "SERVO.D - Positioning system - Positioning drive"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "SERVO.D - Positioning system - Positioning drive"
Technical characteristics
| Power supply | 24 VDC±20%, max. 4 A |
| Nominal power | 60 W |
| Hollow shaft | Bore 14 mm |
| Speed and torque | Not constant use max. 100 rpm: 4 Nm 80 rpm |
| Encoder resolution | 1000 imp/turn |
| Potentiometer resolution | 16000 points on the total stroke |
| Potentiometer transmission ratios | 2-4-6-12-18-36-54-108-162, reducing |
| Potentiometer (rev.) | nP: 1 (340°) – 3 (1080°) – 5 (1800°) – 10 (3600°) |
| Field bus interface | CANopen DS301, MODBUS RTU RS485, PROFIBUS DP |
| Working temperature | 0-60°C |
| Relative humidity | 10-85% |
| Protection class | IP54 or IP65 |
| Self-extinguishable shock-proof case | 112x45x135 |
| Electromagnetic compatibility | 2004/108/EC |
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "SERVO.D - Positioning system - Positioning drive"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "SERVO.D - Positioning system - Positioning drive"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "SERVO.D - Positioning system - Positioning drive"
CAD-Files: please request!
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...

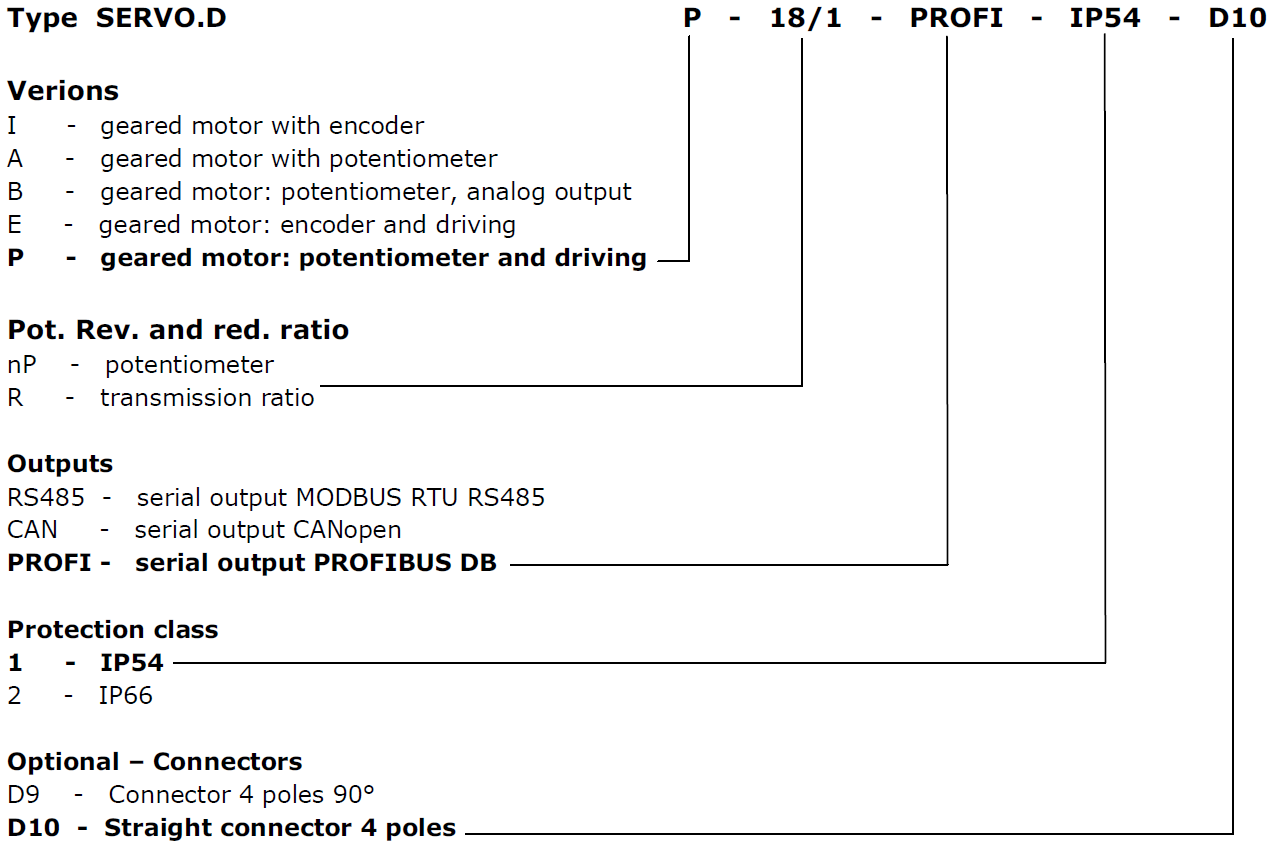

Ordercode "SERVO.D - Positioning system - Positioning drive"
Passendes ZubehörPassendes Zubehör anfragen ...
Accessories "SERVO.D - Positioning system - Positioning drive"
