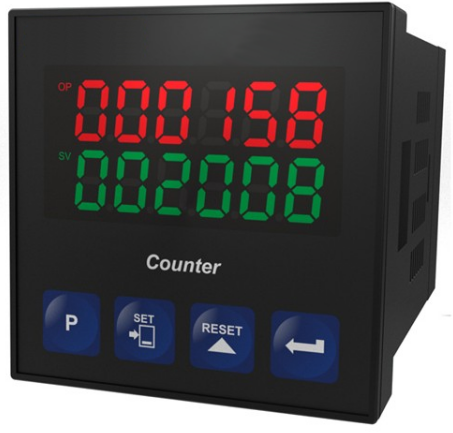

VZE-48Q - Preset Counter
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: VZE-48Q
• Display with 6-digits process value (PV) and 6-digits set value (SV)
• Operation with 1 set value from -9999 to +999999
• Reset-, Pause-, Ch-A- and Ch-B- counting inputs
• Relay output or transistor output (optional)
• NPN/PNP type operation
• Reset automatically when preset is reached or manually by key
• INC, DEC, INC/INC, INC/DEC, UP/DOWN x1 / x2 / x4 counting with phase shifting property
• Multiplication coefficient and decimal point position
Mechanical Data
|
Dimension |
48 x 48 mm (W x H); Depth: 95 mm |
|
Process Value Display |
6-digit; 8 mm, red; LED display |
|
Set Value Display |
6-digit; 8mm, green; LED display |
|
Storage Temperature |
-40 to +85 °C |
|
Operating Temperature |
0 to 50 °C |
|
Humidity |
0 -90% (no condensing) |
|
IP-Class |
IP65 (front) IP20 (back) |
Electrical Data
|
Counting Input (Ch-A; Ch-B) |
switch, proximity |
|
Capacitive Sensor or Encoder è Reset Input è Pause Input è Sensor Type |
switch, proximity / automatic or manual switch, proximity NPN or PNP |
|
Frequency |
max. INC,DEC,INC/INC,INC/DEC,UP/DOWN max. 20 kHZ.x1 / x2 / x4 |
|
Phase Shifting |
max.10 kHz |
|
Reset Pause |
2 - 50 ms |
|
Relay Output Transistor output (optional) |
5 A at 250 VAC (resistive load)
|
|
Supply Voltage |
230 VAC (±15%) 50/60 Hz - 2,3 VA 115 VAC (±15%) 50/60 Hz - 2,3 VA 24 VAC (±15%) 50/60 Hz - 2,3 VA 24 VAC/ VDC (-15%, +10%) 50/60 Hz - 2,3 VA |
CAD-Files: Please request
