Optical distance sensor D-Series DAN-30-150

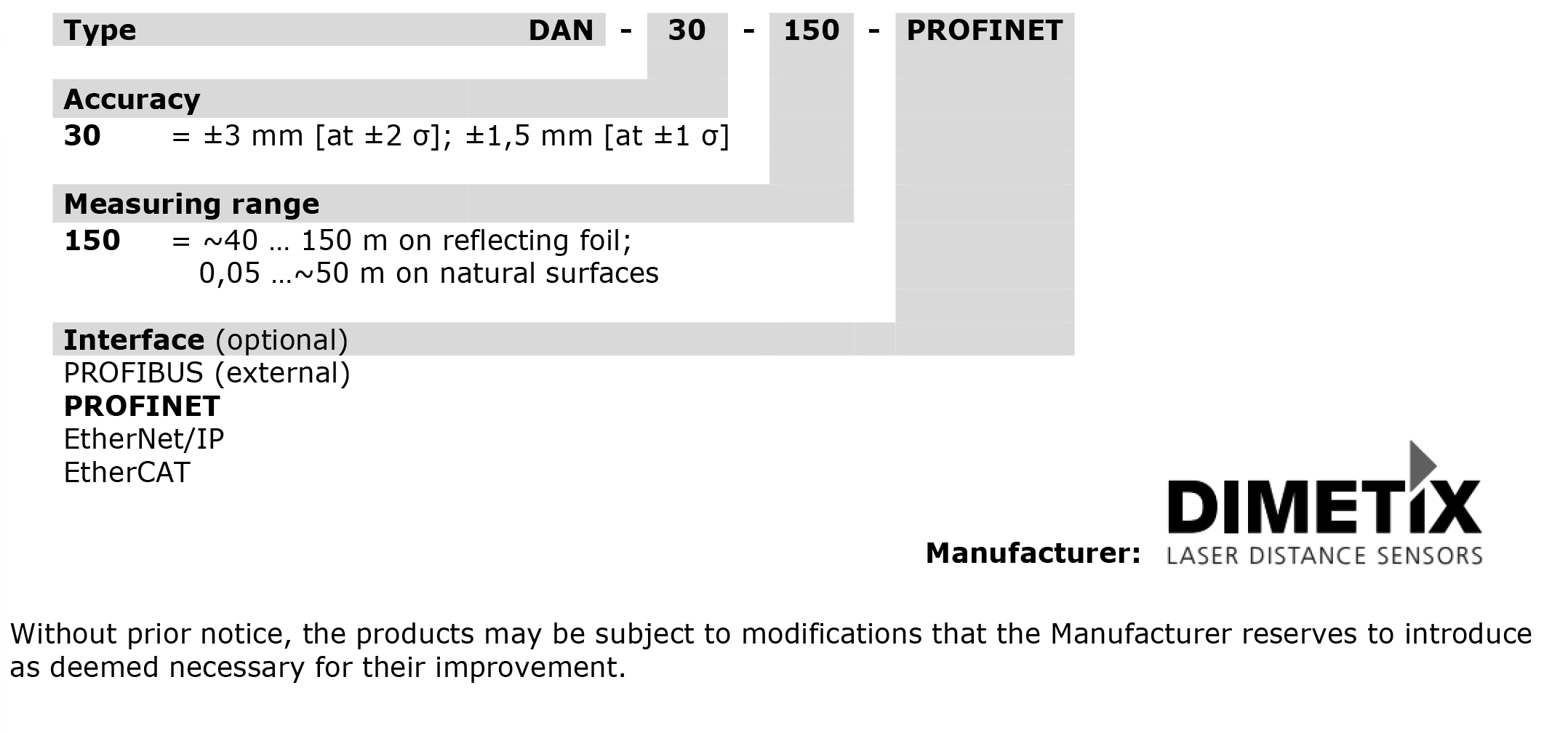

To configure this item, please use the order key:
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your contact
Christian Willmann
c.willmann@willtec.de
07665 - 93465-17
Brochure download
- Order number: DAN-30-150
Optical distance sensor D-Series DAN-30-150 from Willtec Messtechnik for reliable measurement on dark surfaces- and this even in outdoor applications with sunlight!
- Serial interfaces
- Analog output 0.4 ... 20 mA
- Digital inputs and outputs (standard)
- Optional interfaces as well as further functions are configurable by the customer
Specifications
Measuring range on reflective foil ~40...150 m
Measuring range on natural surfaces 0.05...~100 m
Typical accuracy @ 2σ ± 3 mm
Typical repeatability ± 0.7 mm
Max. Measuring rate 100 Hz
Operating temperature -10...+50 °C
Protection class IP65
Supply voltage 12...30 VDC
Laser red, visible yes
diameter laser dot at 10 m 7 x 3 mm
diameter laser dot at 50 m 28 x 13 mm
diameter laser dot at 100 m 55 x 30 mm
Dimensions (l x w x h) 140 x 78 x 48 mm
Weight 350 g
Interfaces
Analog output, programmable, 0/4...20 mA yes
Max. error of analog output ± 0.1 %
2 digital outputs, programmable yes
1 digital output for error indication yes
1 digital input, programmable (instead of DO1) yes
RS-232 yes
RS-422 with programmable ID yes
SSI programmable yes
USB yes (for configuration only)
Optional interfaces
PROFINET yes
EtherNetIP yes
EtherCAT yes
PROFIBUS (external) yes
Connection type
Internal connection terminals yes
Functions
Auto Start yes
Direct connection of an external display yes
External triggering of measurements yes
CAD data: Please request!
Data sheet accessories:
