Optical distance sensor D-Series DBN-50-050

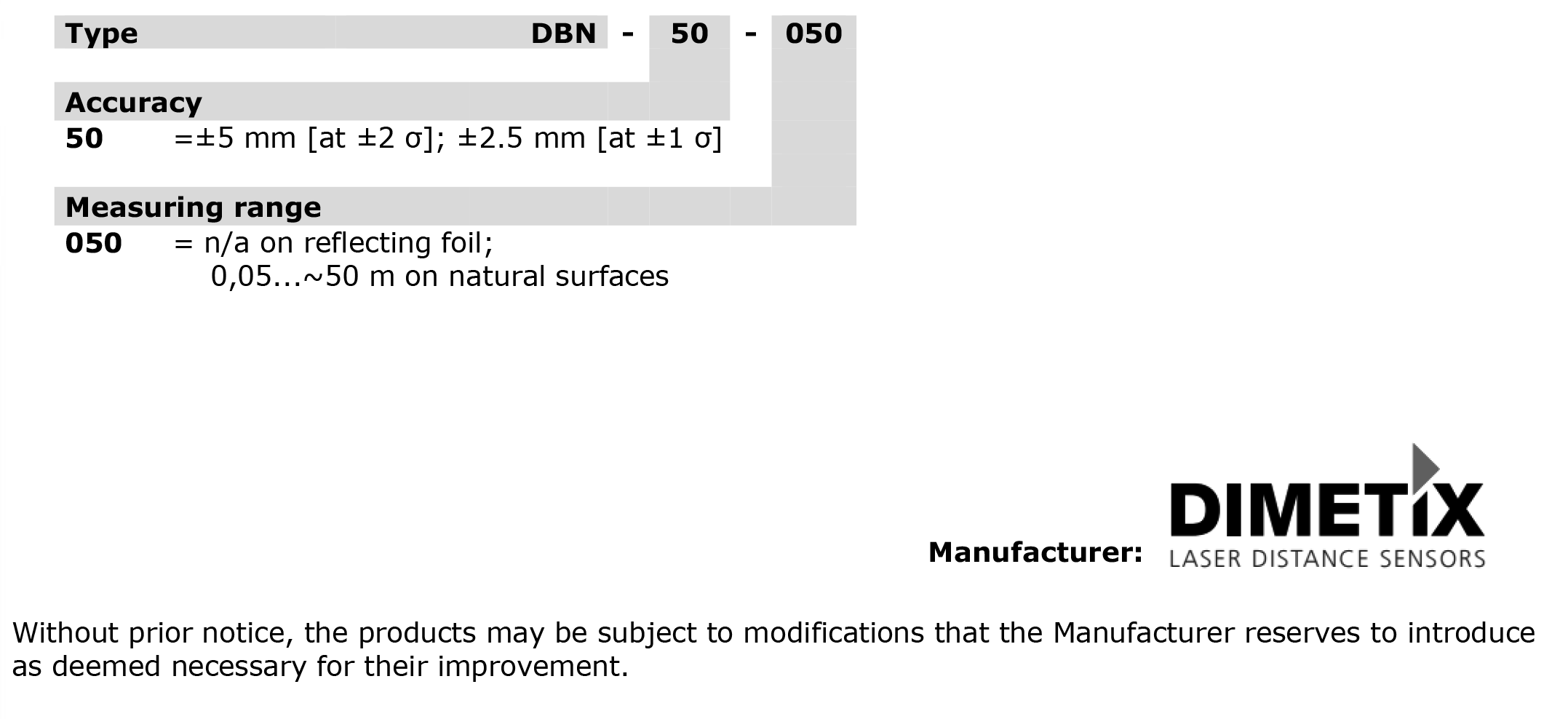

To configure this item, please use the order key:
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your contact
Christian Willmann
c.willmann@willtec.de
07665 - 93465-17
Brochure download
- Order number: DBN-50-050
Optical distance sensor D-Series DBN-50-050 from Willtec Messtechnik for reliable measurement on dark surfaces - even in outdoor applications with sunlight!
- Accuracy ±5 mm or ±2.5 mm
- Measuring range 0.05...~50 m
- Measuring speed 10 Hz
- Analog output 0/4...20 mA
- Serial interfaces
- Digital inputs and outputs (standard)
- Further interfaces and functions are configurable by the customer
Specifications
Measuring range on reflective foil -
Measuring range on natural surfaces 0.05...~50 m
Typical accuracy @ 2σ ± 5 (±2.5) mm
Typical repeatability ± 1.8 (±0.9) mm
Max. Measuring rate 10 Hz
Operating temperature -10...+50 °C
Protection class IP65
Supply voltage 12...30 VDC
Laser red, visible yes
diameter laser dot at 10m 7x3 mm
diameter laser dot at 50m 28x13 mm
diameter laser dot at 100m 55x30 mm
Dimensions (l x w x h) 140x78x48 mm
Weight 350 g
Interfaces
Analog output, programmable, 0/4...20 mA yes
Max. Error of analog output ± 0.2 %
2 digital outputs, programmable yes
1 digital output for error indication yes
1 digital input, programmable (instead of DO1) yes
RS-232 yes
RS-422 with programmable ID no
SSI programmable no
USB yes (only for configuration)
Optional interfaces
PROFINET no
EtherNetIP no
EtherCAT no
PROFIBUS (external) no
Connection type
Internal connection terminals yes
Functions
Auto Start yes
Direct connection of an external display yes
External triggering of measurements yes
CAD data: Please request!
Data sheet accessories:
