Inclination Sensor IM60
They are transducers employed for the survey of angle,... more
Product information "Inclination Sensor IM60"
Inclination Sensor IM60
- They are transducers employed for the survey of angle, with reference to earth’s axis
- High shock-resistant and vibration protection, because of employ without parts in motion
- Compact design
- Easy mounting
- Applications: the measure of inclination angle of cutting-blade, crane, level control of platform
Related links to "Inclination Sensor IM60"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Inclination Sensor IM60"
Mechanical Characteristics
|
Type |
IM60 |
|
Material Housing |
ABS plastic |
|
Metering shafts |
1 |
|
Measure angle |
±60 ° |
|
Linearity |
±0,5° -45° to +45° |
|
Repeatability |
± 0,05° |
|
Relative humidity |
10 % – 90 % |
|
Operating Temperature |
-10 °C – +70 °C |
|
IP-Rating |
IP66 |
|
Connection Cable Connector |
2m; 5m; 10m female straight or 90° |
Electrical Characteristics
|
Supply Voltage |
24 VDC ±20% <150 mA |
|
Output Signal |
Analogue |
|
Certification |
EMC: 2014/30/UE |
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Inclination Sensor IM60"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Inclination Sensor IM60"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Inclination Sensor IM60"
CAD-Files: please request!
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...

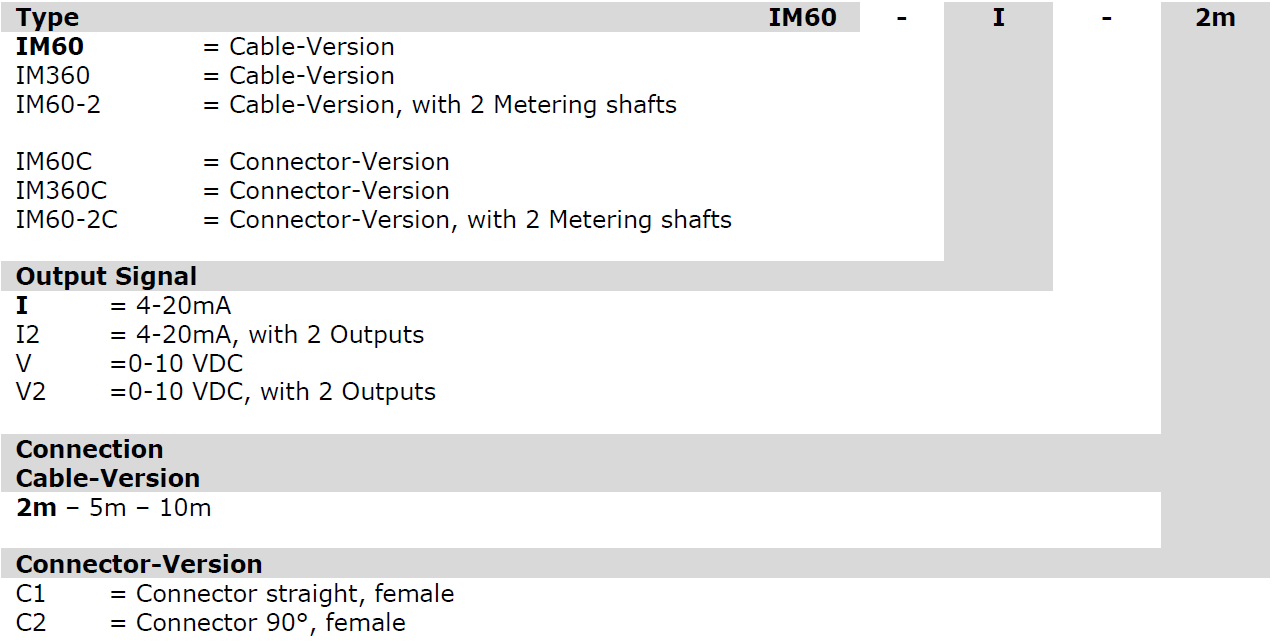

Ordercode "Inclination Sensor IM60"
