Magnetic sensor IMS2
| Pole Pitch | 2mm |
| Resolution | 1.000, 500, 100, 50, 25, 10, 5, 1µm |
| Accuracy | up to ±8 µm |
| Measuring length | depending on magnetic tape |
| Interface | Push-Pull, Line Driver |

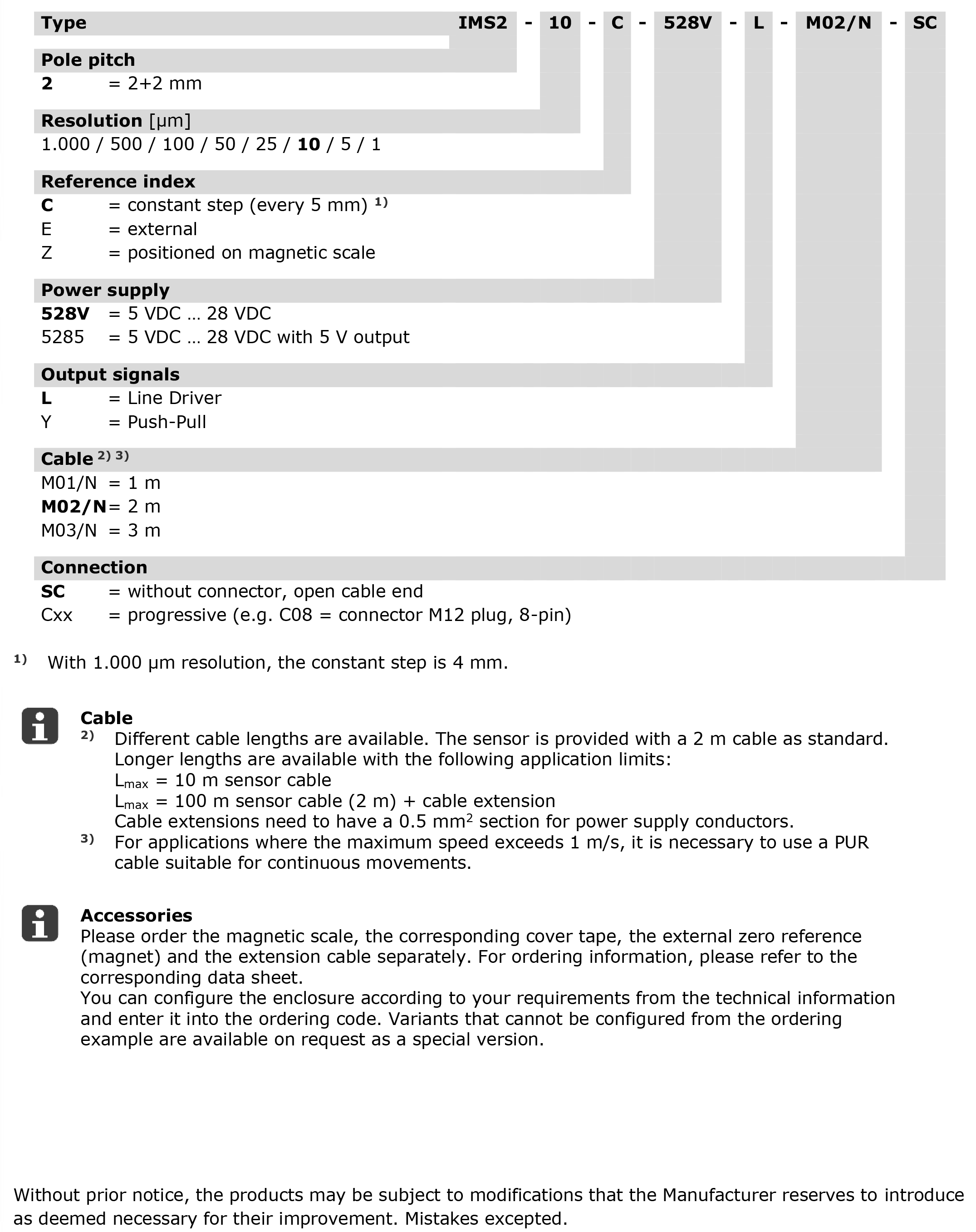

Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: IMS2
Characteristics:
Magnetic sensor for very small measurements... more
Product information "Magnetic sensor IMS2"
Characteristics:
- Magnetic sensor for very small measurements
- Resolutions up to 1 µm programmable (Pr) through the serial interface
- Mounting of the magnetic sensor through wide alignment tolerances
- As a cable standard with low friction coefficient and oil resistant
- Protected against inversion of power supply polarity
- IP-Rating: IP67
Related links to "Magnetic sensor IMS2"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Magnetic sensor IMS2"
Mechanical Data
| Materia | |
| Housing | Aluminium; die-cast |
| Cable1) | PVC, Ø6,1 (=8-wire) |
| Power Supply | 0,35 mm2 |
| Signals | 0,14 mm2 |
| Length | 2 m (standard) |
| Bending Radius | > 60 mm |
| Weight | 40 g |
| Pole pitch | 2+2 mm |
| Resolution | 1.0002), 500, 100, 50, 25, 10, 5, 1 |
| Accuracy | Depending on Resolution (see Datasheet) |
| Repeatability | ± 1 Increment |
| Distance Sensor - Magnetic Scale | 0,2 … 1,4 mm (with magnetic scale PM200) |
| 0,3 … 0,8 mm (with PM200 / Reference index) | |
| Reference Index | C = at constant distance (2 mm)* |
| Z = positioned on magnetic scale | |
| E = external | |
| Traversing Speed3) | < 1,2 m/s (resolution: 1 µm) |
| < 12 m/s (resolution: 10 µm) | |
| Relative Humidity | 100% |
| Operating Temperature | 0 °C … +50 °C |
| Storage Temperature | -20 °C … +80 °C |
1) PUR cable or cable with reduced section on request
2) With 1,000 μm resolution, the constant step is 4 mm.
3) The indicated speeds are referred to a maximum frequency of 300 kHz.
Electrial Data
| Power Supply | 5 … 28 VDC ±5% |
| Power Consumption | |
| unload | < 60 mA |
| load | < 140 mA(with 5 V and R = 120 Ω) |
| < 90 mA(with 5 V and R = 1,2 kΩ) | |
| Frequency | < 300 kHz |
| < 500 kHz (on request) | |
| Output | Line Driver |
| Push-Pull | |
| Vibration EN 60068-2-6 | 300 m/s2 [55 … 2.000 Hz] |
| Shock EN 60068-2-27 | 1.000 m/s2 (11 ms) |
| IP-Rating | IP67 |
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Magnetic sensor IMS2"
See the Datasheet
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Magnetic sensor IMS2"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Magnetic sensor IMS2"
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...
Ordercode "Magnetic sensor IMS2"
Passendes ZubehörPassendes Zubehör anfragen ...
Accessories "Magnetic sensor IMS2"
