EP46NET Position indicator - electric digital

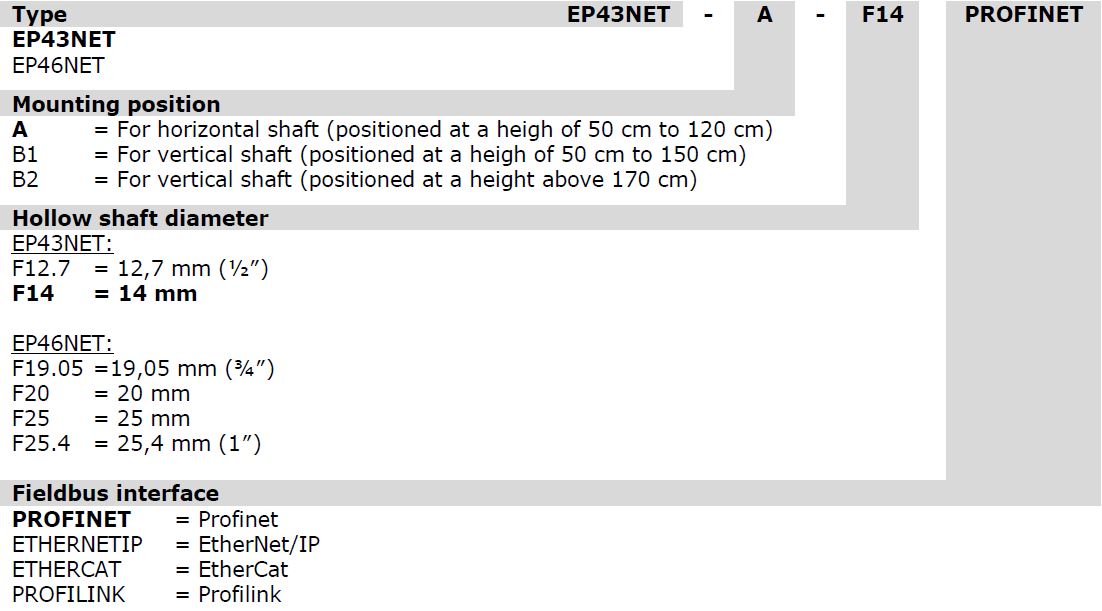

Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: F4NET
- Programmable electronic position indicator with through hollow shaft and integrated fieldbus interface for accurate adjustment control of spindles.
- Evolution of mechanical indicators, with comparable dimensions and the same mounting system, for semi-automatic adjustment monitored by PLC on a vast range of machines and plants even in complex and heterogenous working conditions.
- LCD with two rows with backlight for target- and actual value.
- Suitable for semi-automatic and monitored adjustments of spindles.
- Parameters freely programmable via keyboard operation with integrated fieldbus interface Profinet, EthernetIP, EtherCat and Powerlink for network connection with PLC or remote monitoring system.
- Display with 7.5 mm digit height offers excellent readability, also at greater distances.
- User guidance via 2 signal LEDs (green/red) to indicate: position has been reached / not reached.
- Battery lifetime: 6 to 8 years.
- Extensive accessories available: shaft clamping flange, reducing bushes, hand crank or hand wheel
Mechanical Characteristics
|
Housing |
Aluminium, anodized |
|
Hallow shaft, VA |
c = 20mm / 19,05mm (3/4″) / 25mm / 25,4mm (1″) |
|
Display |
LCD with backlight, digit height 7,5 mm |
|
Indicating range |
-99999; +99999 |
|
Speed |
Max. 1.000 revolutions / min. |
|
Resolution, max. |
4.000 ppr |
|
Operating temperature |
0°C to +50°C |
|
Relative humidity |
35% to 85% (no condense) |
|
Protection rating |
IP65 |
|
Electrical connection |
1x M12x1 plug, 4-pole, A-coded (power supply) |
|
Ethernet connection |
2x M12x1 socket, 4-pole, D-coded (fieldbus communication) |
Electrical Data
|
Power supply |
10-30 VDC, max. 100 mA |
|
Battery |
3,6 V- 1/2 AA, lifetime 6-8 years |
|
Available functions |
Reset, absolute/ incremental value, mm/ inch-conversion, offset |
|
Keyboard |
Frontal keyboard – 3 programming- and function keys |
|
Serial port |
RS485 – MODBUS RTU |
|
Electromagnetic compatibility (EMC) |
2014/30/UE |
|
RoHS |
2011/65/UE |
CAD-Files: please request!
