Optical Scale - Incremental GVS300
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: GVS300
Incremental optical scale with stainless steel measuring support, small-sized to allow... more
Product information "Optical Scale - Incremental GVS300"
Incremental optical scale with stainless steel measuring support, small-sized to allow installation in limited space.
Characteristics:
- Optimal protection of the scale through two sealing lips made of a special elastomer, resistant to oil and wearing
- Optional reference index in central position, at constant steps or at different positions
- Wide alignment tolerances
Related links to "Optical Scale - Incremental GVS300"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Optical Scale - Incremental GVS300"
| Properties | Technical data |
| Measuring support | stainless steel |
| Thermal expansion coefficient | 10.6 x 10⁻⁶ °C⁻ |
| Reference indexes (I₀) | No cod. = without reference index P = constant step (every 30 mm) Z = in required positions |
| Resolution | 100 - 50 - 5 - 2 - 1 - 0.5 - 0.2 - 0.1 |
| Max. traveling speed LINE DRIVER (VL) output | 30 - 80 m/min, depending on resolution* |
| Max. traveling speed PUSH-PULL (VQ) output | 4 - 80 m/min, depending on resolution* |
| Accuracy grade | ± 5 μm (referred to a measuring length of 1 m) |
| Measuring length ML in mm | up to 700 mm (for longer measuring lengths it is necessary to use fixing blocks) |
| Max. acceleration | 10 m/s² |
| Required moving force | < 4 N |
| Vibration resistance (EN 60068-2-6) | 50 m/s² [55-2000 Hz] |
| Shock resistance (EN 60068-2-27) | 150 m/s² [11 ms] |
| Protection class (EN 60529) | IP 53 standard IP 64 pressurized |
| Operating temperature | 0 °C - 50 °C |
| Storage temperature | -20 °C - 70 °C |
| Relative humidity | 20% - 80% (not condensed) |
| Carriage sliding | by ball bearings |
| Power supply | 5 Vdc ± 5% or 10 - 28 Vdc ± 5% |
| Current consumption | 140 mAMAX (with R = 120 Ω) 5 Vdc |
| A, B and I₀ output signals | LINE DRIVER PUSH-PULL |
| Max. cable length | 100 m (LINE DRIVER) 50 m (PUSH-PULL) |
| Electrical connections | see datasheet |
| Electrical protections | inversion of polarity and short circuits |
| Weight | 250 g + 420 g/m |
* Depending on resolution, more information can be found in our datasheet
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Optical Scale - Incremental GVS300"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Optical Scale - Incremental GVS300"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Optical Scale - Incremental GVS300"
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...

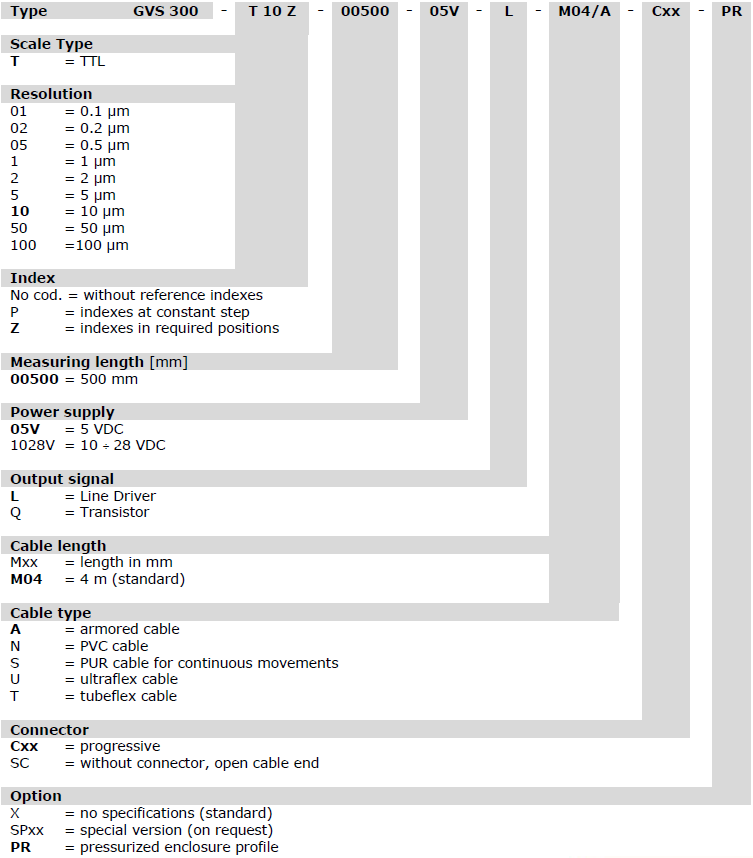

Ordercode "Optical Scale - Incremental GVS300"
