Optical Scale - Incremental GVS900T
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: GVS900T
Incremental optical scale, available in a single piece or in modular version for... more
Product information "Optical Scale - Incremental GVS900T"
- Incremental optical scale, available in a single piece or in modular version for large machines (up to 30040 mm of measuring length or higher on request).
- Application in various industrial fields such as machine tools, vertical lathes, gantry machines, laser/plasma cutting machines, robotics, automation, etc.
- Stainless steel grating, integral with the machine guide, for an excellent accuracy at any temperature.
- Resolutions up to 0.1 μm. Accuracy grade ± 5 μm.
- Rigidly bound modules, for a perfect seal against liquids and environmental dirty, unaltered over time.
- Reference indexes at coded distance, at constant step, or selectable every 50 mm along the entire measuring length, with Zero Magneto Set device.
- Adjustable cable output, through double connector.
- Wide alignment tolerances. Pressurization from both sides of the scale and/or of the transducer.
Related links to "Optical Scale - Incremental GVS900T"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Optical Scale - Incremental GVS900T"
| Measuring Support | stainless steel grating |
| Grating pitch | 40 µm |
| Linear thermal expansion coefficient | 10.6 x 10-6 °C-1 |
| Reference Indexes (I0) |
C = at coded distance P = at constant step (every 50 mm) E = selectable (every 50 mm) |
| Resolution | 10 - 5 - 1 - 0.5 - 0.1 µm |
| Accuracy grade | ± 5 µm * |
| Measuring length ML in mm |
from 640 mm to 30040 mm, with steps of 200 mm ** modules length: 1200, 1400, 1600, 1800, 2000 mm |
| Max. traversing speed | 120 m/min *** |
| Max. acceleration | 30 m/s² |
| Required moving force | ≤ 15 N |
| Vibration resistance (EN 60068-2-6) | 100 m/s² [55 ÷ 2000 Hz] |
| Shock resistance (EN 60068-2-27) | 300 m/s² [11 ms] |
| Protection class (EN 60529) | IP53 standard IP64 pessurized (optional) |
| Operating temperature | 0 °C ÷ 50 °C |
| Storage temperature | -20 °C ÷ 70 °C |
| Relative humidity | 20% ÷ 80% (not condensed) |
| Reading block sliding | by ball bearings |
| Power supply | 5 VDC ± 5% |
| Current consumption | 170 mAMAX (with R = 120 Ohm) |
| A, B and I0 output signal | LINE DRIVER |
| Max. cable length | 45 m **** |
| Electrical connections | see related table |
| Connector | on the transducer, with adjustable outputs |
| Electrical protections | inversion of polarity and short circuits |
| Weight | 1.7 kg + 3.5 kg/m (per m measuring length) |
* The declared accuracy grade of ± X μm is referred to a measuring length of 1 m.
** Longer measuring lengths are available on request.
*** With a 0.1 µm resolution, the maximum traversing speed becomes 45 m/min.
**** Longer cable lengths are available on request.
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Optical Scale - Incremental GVS900T"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Optical Scale - Incremental GVS900T"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Optical Scale - Incremental GVS900T"
CAD-Files: Please request
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...

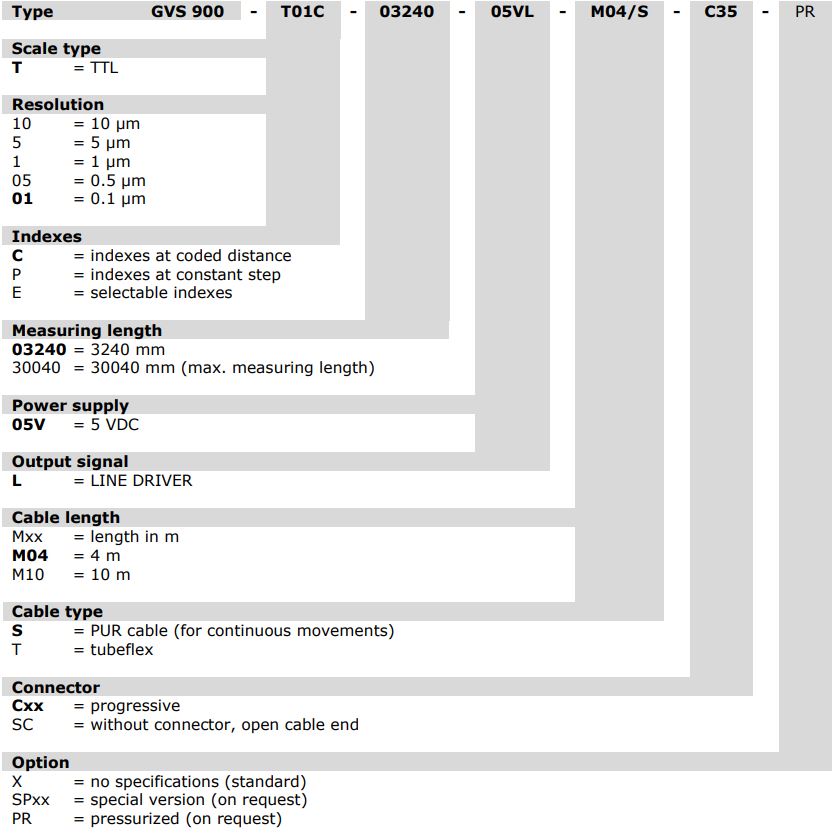

Ordercode "Optical Scale - Incremental GVS900T"
Passendes ZubehörPassendes Zubehör anfragen ...
Accessories "Optical Scale - Incremental GVS900T"
