Absolute encoder SCA94DD

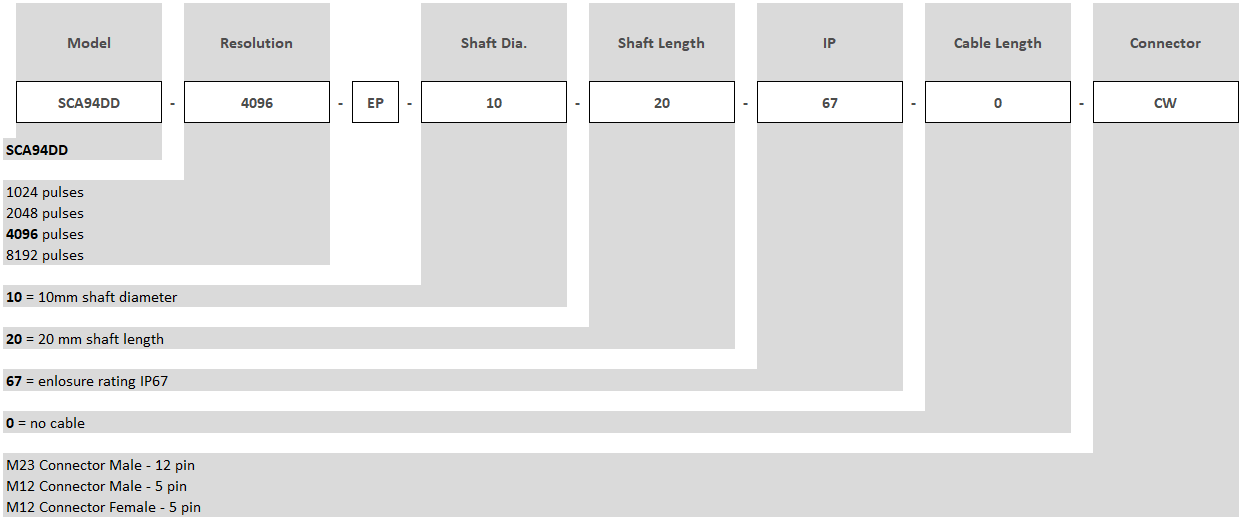

Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
![Christian Willmann Christian_Willmann](http://willtec.de/img/kontakt/ansprechpartner/christian-willmann.jpg)
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: SCA94DD
Semi-absolute "eCode" Encoder with solid shaft
Characteristics:
... more
Product information "Absolute encoder SCA94DD"
Semi-absolute "eCode" Encoder with solid shaft
Characteristics:
- Diameter: Ø94 mm
- Particularly made to be used in wind power generation
- Singleturn, 20 bits
- Enclosure Rating: IP67
- Output: Profibus
Related links to "Absolute encoder SCA94DD"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Absolute encoder SCA94DD"
Electrical Specifications
Code: | Semi-absolute singleturn |
Internal Resolution: | 1,048,576 (2²⁰) positions per revolution. |
Supply Voltage: | 9 V to 30 V. |
Current Consumption: (typical without load) |
100 mA @ Vsup = 10 V. 60 mA @ Vsup = 24 V. |
Outputs: | Digital – Quadrature with index. |
Interfaces: | Profibus for data interchange. RS485 for set-up. |
Electrical Protection: | Output short circuit, reverse polarity and transient surge protected through built-in protection module |
Noise Immunity: | Tested to EN61000-6-2 : 2005 (industrial environments) and EN 61000-6-3 : 2007 (residential, commercial, and light-industrial environments) for Electromagnetic compatibility (EMC). |
Electrical Specifications – Digital Outputs
Output: | OL7272 Line Driver. HTL compatible. |
Output Specifications | Vhigh ≥ Vsup - 1.8 V @ Iout = - 20 mA Vlow ≤ 0.8 V @ Iout = 20 mA |
Output Current: | 40 mA max. load per output channel |
Output Format: | Two channel (A, B) quadrature with Index (Z) and complementary (A-, B-,Z-) outputs |
Phase Sense: | Selectable as clockwise (CW) or counter clockwise (CCW) |
Resolution: | Selectable as 1024, 2048, 4096 or 8192 pulses per revolution. |
Maximum Frequency: | 25 kHz |
Speed Specifications
Maximum Speed: | 50 rpm |
Resolution: | 0.01 rpm |
Accuracy: | Depending on sample time. Ex. ±0.05 rpm sample time = 10 mSec. |
Sample Time: | Selectable 1mSec to 100 mSec. (10 to 1000 samples per second). 10 mSec recommended. |
Position Specifications
Resolution: | 0.1 degree |
Accuracy: | ±0.1 degree |
Measuring Range: | 0.0 to 359.9 degree (1 revolution) |
Profibus Specifications
Interface Standard: | DP-V0. |
Baud Rate: | All standard baud rates from 9,600 baud to 12 Mbaud. |
Address Range: | 1 to 125 |
Termination Resistors: | Built-in – Switchable on/off |
Mechanical Specifications
Material: | Housing: Aluminum Cap: Aluminum Shaft: Stainless Steel (AISI 303) |
Weight: | Encoder: approx. 1100 gr. (38.80 oz) |
Bearing Life: | > 1.9 x 10¹⁰ revolutions at rated load |
Starting Torque: | < 0.1 Nm (14.16 oz-in) at 25° C |
Mass Moment of Inertia: | 31 gcm² (4.39 x 10⁻⁴ oz-in-sec²) |
Shaft Loads: | Axial 200 N (45 lbs) max. Radial 400 N (90 lbs) max. |
Environmental Specifications
Operating Temperature: | -40° to +85° C |
Storage Temperature: | -40° to +85° C |
Shock: | 100 G / 11 ms |
Vibration: | (10-2000 Hz) / 10 G |
Bump: | 10 G - 16 ms (1000 x 3 axis) |
Humidity: | 98 % RH without condensation |
Enclosure Rating: | IP 67 / Nema 6 (approx.) |
Connection
Connectors: | 12-pin M23 Male connector 5-pin M12 Male connector 5-pin M12 Female connector |
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Absolute encoder SCA94DD"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Absolute encoder SCA94DD"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Absolute encoder SCA94DD"
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...
Ordercode "Absolute encoder SCA94DD"
Passendes ZubehörPassendes Zubehör anfragen ...
Accessories "Absolute encoder SCA94DD"
