- Order number: EXME-A-CANopen
Shaft Encoder - Ø 78 mm
Shaft: Ø 10 mm and Ø 12 mm
DeviceNet communication protocol... more

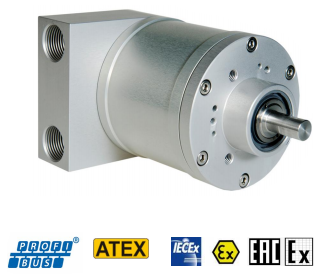

Product information "Encoder Ex-Proof Mining EXME-A-CANopen - absolute"
- Shaft Encoder - Ø 78 mm
- Shaft: Ø 10 mm and Ø 12 mm
- DeviceNet communication protocol
- Resolution up to 30 bits
- Removable End Cap for on-site modifications
- ATEX, IECEx, EAC, certified for Mining
Related links to "Encoder Ex-Proof Mining EXME-A-CANopen - absolute"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Encoder Ex-Proof Mining EXME-A-CANopen - absolute"
Electrical Specifications
| Code: | Absolute - Binary |
| Interface: | CAN CANopen protocol Transceiver according to ISO 11898; galvanically isolated by optocouplers |
| Resolution: | Max. 14 bit (16384) revolutions Max. 16 bit (65536) steps per rev. |
| Device Addressing: | Adjustable by rotary switches in the connection cap |
| Transmission Rate: | Max. 1 MBaud |
| Supply Voltage: | 10 to 30 Vdc (absolute limits) According to EN 50178 |
| Current Consumption: | Max. 230 mA with 10 Vdc Max. 100 mA with 24 Vdc |
| Power Consumption: | Max. 2.5 watts |
| Step Frequency LSB: | 800 kHz |
| Accuracy of Division: | +/- ½ LSB (12 bit) +/- 2 LSB (16 bit) |
| Electrical Lifetime: | > 10⁵ hours |
| Electrical Protection: | Reverse polarity and over-voltagepeak protection |
| Noise Immunity: | EN61000-6-2 |
| Emitted Interference: | EN 61000-6-4 |
Mechanical Specifications
| Material: | Housing: Stainless Steel Cap: Stainless Steel Shaft: Stainless Steel |
| Weight: | Stainless Steel: ~ 3100 gr (109,35 oz) |
| Bearing Life: | > 1.9 x 10¹⁰ revolutions at rated load |
| Shaft Speed: | 6.000 rpm (max.) IP 64 3.000 rpm (max.) IP 65/66/67/68 |
| Starting Torque: | ≤ 0,01 Nm at 25° C (no seal) ≤ 0,03 Nm at 25° C (with seal) |
| Mass Moment of Inertia: | 42 gcm² (5,95 x 10⁻⁴ oz-in-sec²) |
| Shaft Loads: | Axial: 60 N (13,50 lbs) max. Radial: 80 N (17,98 lbs) max. |
Environmental Specifications
| Operating Temp.: | -40° to +70° C |
| Storage Temp.: | -40° to +70° C |
| Shock: | 100 G / 11 ms |
| Vibration: | 10-2000 Hz / 10 G |
| Bump: | 10 G / 16 ms (1000 x 3 axis) |
| Humidity: | 98 % RH without condensation |
| Enclosure Rating: | IP 64 / Nema 4 (approx.) IP 65 / Nema 5 (approx.) IP 66 / Nema 6 (approx.) IP 67 / Nema 6 (approx.) IP 68 (1hour/1 meter) / Nema 6P (approx.) |
Certificates
ATEX: Certificate No.: ITS09ATEX16925X
I M2 Ex db I Mb, -40°C ≤ TA ≤ +70°C
ATEX DEKRA: Certificate No.: BVS 18 ATEX E 059 X
I M2 Ex db I mb -40°C < T.amb <+70°C
IECEx: Certificate No: IECEx IST 10.0009X
Ex db I Mb, -40°C ≤ Ta ≤ +70°C
IECEx TSA: Certificate No.: IECEx TSA 11.0008X
Ex db I Mb, -40°C ≤ Ta ≤ +70°C
EAC: НАНИО «ЦСВЭ» No. ЕАЭС RU C-DK.AA87.B.00266/19
PB Ex db I Mb X -40°C > T.amb < +70°C
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Encoder Ex-Proof Mining EXME-A-CANopen - absolute"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Encoder Ex-Proof Mining EXME-A-CANopen - absolute"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Encoder Ex-Proof Mining EXME-A-CANopen - absolute"
CAD-Files: Please request.
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...

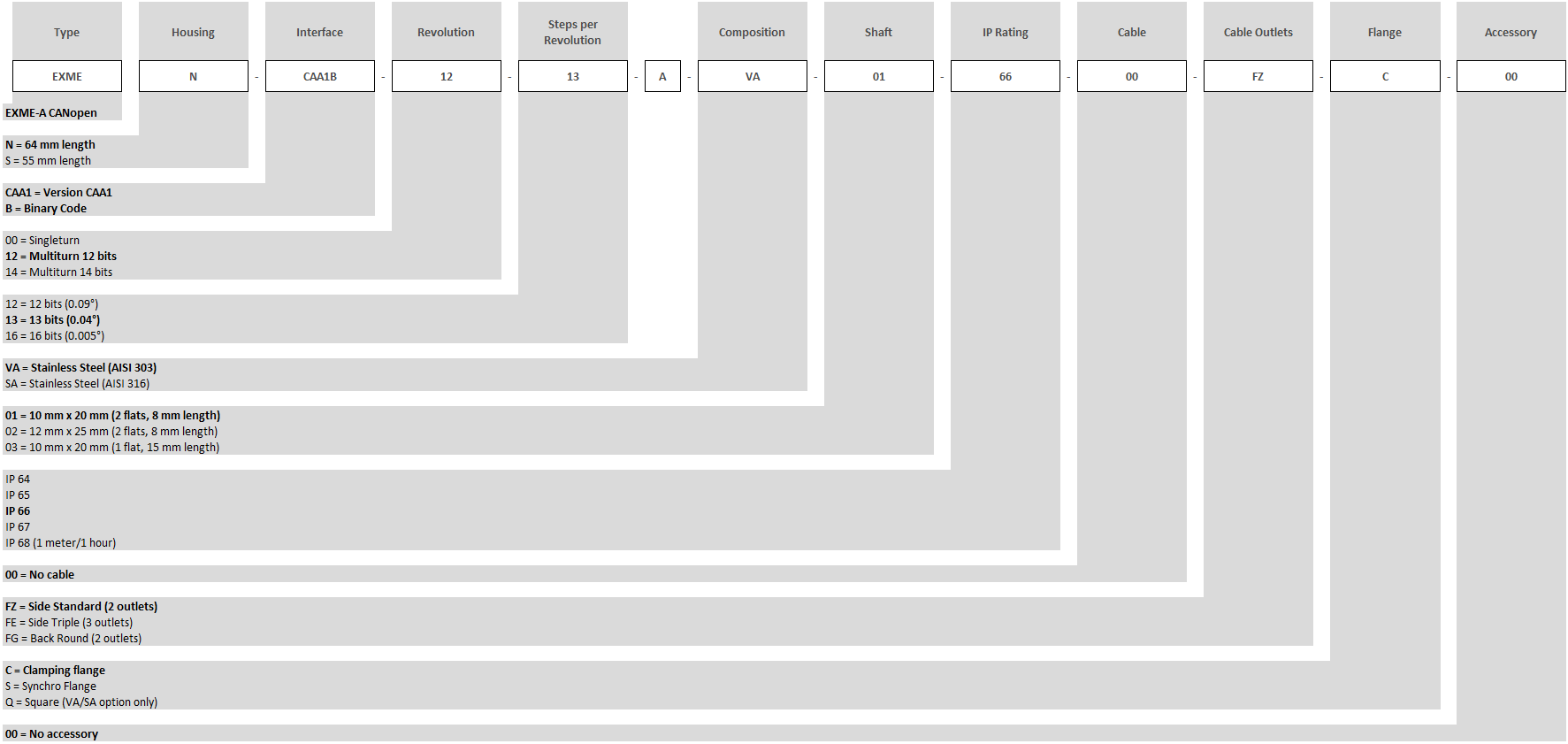

Ordercode "Encoder Ex-Proof Mining EXME-A-CANopen - absolute"
