Encoder Ex-Proof Mining EXME-A-SSI - absolute
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
![Christian Willmann Christian_Willmann](http://willtec.de/img/kontakt/ansprechpartner/christian-willmann.jpg)
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: EXME-A-SSI
Shaft Encoder - Ø 78 mm
Shaft: Ø 10 mm and Ø 12 mm
Synchronous Serial Interface (SSI) –... more
Product information "Encoder Ex-Proof Mining EXME-A-SSI - absolute"
- Shaft Encoder - Ø 78 mm
- Shaft: Ø 10 mm and Ø 12 mm
- Synchronous Serial Interface (SSI) – (RS422/TTL)
- Resolution up to 30 bits
- Removable End Cap for on-site modifications
- ATEX, IECEx, EAC, certified for Mining
Related links to "Encoder Ex-Proof Mining EXME-A-SSI - absolute"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Encoder Ex-Proof Mining EXME-A-SSI - absolute"
Electrical Specifications
Code: | Absolute – Binary or Gray Code |
Interface: | Synchronous Serial (SSI) Driver meets EIA standard RS422 |
Resolution: | Max. 14 bit (16384) revolutions Max. 16 bit (65536) steps per rev. |
Transfer Distance: | Up to 1200 m (3937 ft) |
Clock Input: | RS422 compatible via optocoupler |
Data Output: | Line Driver RS422 |
Clock Frequency: | 100 kHz to 2MHz |
Accuracy of Division: | +/- ½ LSB (12 bit) +/- 2 LSB (16 bit) |
Cycle Time: | < 25 μs |
Supply Voltage: | 4.5 to 30 VDC (Absolute limits) According to EN 50 178 |
Power Consumption: | Max. 1,5 watts |
Electrical Protection: | Reverse polarity and over-voltage-peak protection |
Noise Immunity: | EN61000-6-2 |
Emitted Interference: | EN 61000-6-4 |
Mechanical Specifications
Material: | Housing: Stainless Steel Cap: Stainless Steel Shaft: Stainless Steel |
Weight: | Stainless Steel: ~ 3100 gr (109,35 oz) |
Bearing Life: | > 1.9 x 10¹⁰ revolutions at rated load |
Shaft Speed: | 6.000 rpm (max.) IP 64 3.000 rpm (max.) IP 65/66/67/68 |
Starting Torque: | ≤ 0,01 Nm at 25° C (no seal) ≤ 0,03 Nm at 25° C (with seal) |
Mass Moment of Inertia: | 42 gcm² (5,95 x 10⁻⁴ oz-in-sec²) |
Shaft Loads: | Axial: 60 N (13,50 lbs) max. Radial: 80 N (17,98 lbs) max. |
Environmental Specifications
Operating Temp.: | -40° to +70° C |
Storage Temp.: | -40° to +70° C |
Shock: | 100 G / 11 ms |
Vibration: | 10-2000 Hz / 10 G |
Bump: | 10 G / 16 ms (1000 x 3 axis) |
Humidity: | 98 % RH without condensation |
Enclosure Rating: | IP 64 / Nema 4 (approx.) IP 65 / Nema 5 (approx.) IP 66 / Nema 6 (approx.) IP 67 / Nema 6 (approx.) IP 68 (1hour/1 meter) / Nema 6P (approx.) |
Certificates
ATEX: Certificate No.: ITS09ATEX16925X
I M2 Ex db I Mb, -40°C ≤ TA ≤ +70°C
ATEX DEKRA: Certificate No.: BVS 18 ATEX E 059 X
I M2 Ex db I mb -40°C < T.amb <+70°C
IECEx: Certificate No: IECEx IST 10.0009X
Ex db I Mb, -40°C ≤ Ta ≤ +70°C
IECEx TSA: Certificate No.: IECEx TSA 11.0008X
Ex db I Mb, -40°C ≤ Ta ≤ +70°C
EAC: НАНИО «ЦСВЭ» No. ЕАЭС RU C-DK.AA87.B.00266/19
PB Ex db I Mb X -40°C > T.amb < +70°C
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Encoder Ex-Proof Mining EXME-A-SSI - absolute"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Encoder Ex-Proof Mining EXME-A-SSI - absolute"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Encoder Ex-Proof Mining EXME-A-SSI - absolute"
CAD-Files: Please request.

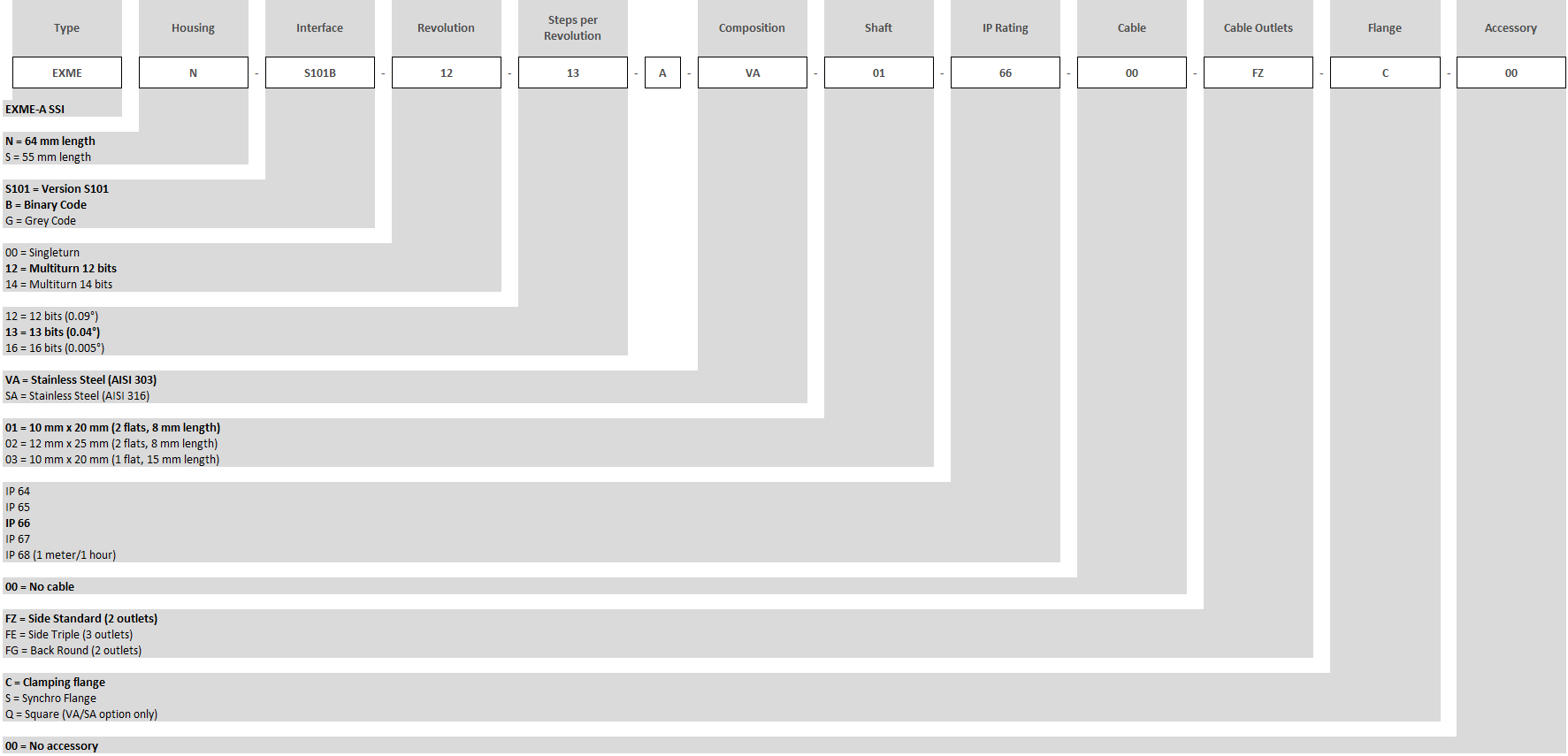

Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...
Ordercode "Encoder Ex-Proof Mining EXME-A-SSI - absolute"
Passendes ZubehörPassendes Zubehör anfragen ...
Accessories "Encoder Ex-Proof Mining EXME-A-SSI - absolute"
