Encoder Ex-Proof 2CEX-H-SSI - absolute
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
![Christian Willmann Christian_Willmann](http://willtec.de/img/kontakt/ansprechpartner/christian-willmann.jpg)
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: 2CEX-H-SSI
• Ø 68 mm
• Hollow shaft Ø 10 mm
• Singleturn 13 Bit
• Multiturn up... more
Product information "Encoder Ex-Proof 2CEX-H-SSI - absolute"
• Ø 68 mm
• Hollow shaft Ø 10 mm
• Singleturn 13 Bit
• Multiturn up to 37 Bit
• Interface: SSI
• Binary or Greycode available
• Accuracy: ± 0,35°
• IP64 to IP67
• ATEX, EAC Ex certificate
• Non-removable end cap -delivered with 10-pin MIL Connector
Related links to "Encoder Ex-Proof 2CEX-H-SSI - absolute"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Encoder Ex-Proof 2CEX-H-SSI - absolute"
Electrical Specifications
Encoder Type: | Absolute Multiturn |
Singleturn Resolution: | 13 bits (8192) steps per revolution |
Number of Revolutions: | 12 bits (4096) revolutions 16 bits (65536) revolutions 20 bits (1048576) revolutions 24 bits (16777216) revolutions |
Supply Voltage: | 5 VDC ±5% or 9-30 VDC |
Typical Current Consumption: | 30 mA @ Vsup = 5V 25 mA @ Vsup = 10V 15 mA @ Vsup = 24V |
Accuracy: | ± 0,35ᴼ |
Interface: | SSI (Synchronous Serial Interface) |
Output Code: | Binary or Gray |
Electrical Interface: | Differential (RS422) |
Clock Frequency: | 100 kHz to 2 MHz |
Counting Direction: | Increasing clockwise or increasing counter clockwise seen from shaft end of encoder |
Electrical Protection: | Reverse polarity and output short circuit protected |
Noise Immunity: | EN61000-6-2: 2005 (industrial environments) Electromagnetic compatibility (EMC) EN 61000-6-3: 2007 (residential, commercial, and light-industrial environments) for Electromagnetic compatibility (EMC) |
Mechanical Specifications
Material: | Housing: Aluminum Cap: Aluminum Hollow Shaft: Stainless Steel (AISI 303) |
Weight: | Encoder: Approx. 540 gr (19 oz) Cable: 50 gr / meter (1.76 oz / meter) |
Bearing Life: | > 1.9 x 10¹⁰ revolutions at rated load |
Hollow Shaft Speed: | 3,000 rpm continuous (max.) IP 67 |
Starting Torque: | < 0.1 Nm (14.16 oz-in) at 25° C IP 67 |
Mass Moment of Inertia: | 50 gcm² (7.08 x 10⁻⁴ oz-in-sec²) |
Hollow Shaft Loads: | Axial: 50 N (11.25 lbs) max. Radial: 100 N (22.50 lbs) max. |
Environmental Specifications
Operating Temp.: | -40° to +70° C |
Storage Temp.: | -40° to +85° C |
Shock: | 100 G / 11 ms |
Vibration: | 10 G /10-2000 Hz |
Bump: | 10 G / 16 ms (1000 x 3 axis) |
Humidity: | 98 % RH without condensation |
Enclosure Rating: | IP 64 / Nema 4 (approx.) IP 65 / Nema 4 (approx.) IP 66 / Nema 6 (approx.) IP 67 / Nema 6 (approx.) option |
Connection Options
Connectors: | 10-pin Mil radial (See Datasheet, Table 1) |
Certificates
ATEX: Certificate No.: ITS 09 ATEX 46134X II 3G Ex nA IIC T4 Gc, II 3D Ex tc IIIC T100°C
Dc, -40°C<T.amb<+70°C
EAC Ex: НАНИО «ЦСВЭ» No. ЕАЭС RU C-DK.AA87.B.00266/19 2Ex nA IIC T4 Gc X,
Ex tc IIIC T100°C Dc X -40°C<T.amb<+70°C
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Encoder Ex-Proof 2CEX-H-SSI - absolute"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Encoder Ex-Proof 2CEX-H-SSI - absolute"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Encoder Ex-Proof 2CEX-H-SSI - absolute"
CAD-Files: Please request.
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...

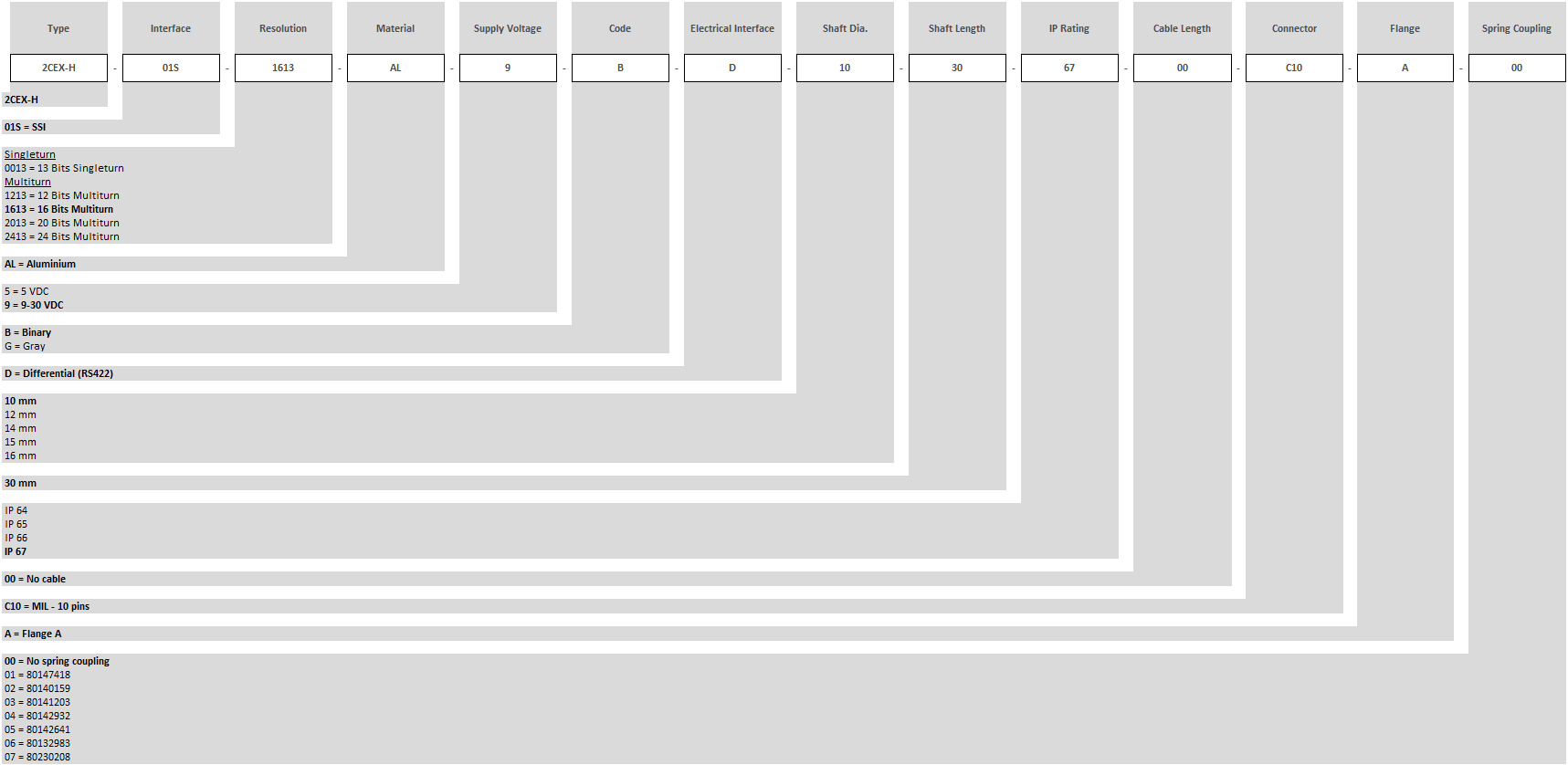

Ordercode "Encoder Ex-Proof 2CEX-H-SSI - absolute"
Passendes ZubehörPassendes Zubehör anfragen ...
Accessories "Encoder Ex-Proof 2CEX-H-SSI - absolute"
