Encoder Ex-Proof EXAG-H-Ethernet - absolute
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: EXAG-H-Ethernet
Hollow Shaft Encoder - Ø 78 mm
Hollow Shaft: Ø 14 mm and Ø 16 mm
Ethernet - TCP/IP and... more
Product information "Encoder Ex-Proof EXAG-H-Ethernet - absolute"
- Hollow Shaft Encoder - Ø 78 mm
- Hollow Shaft: Ø 14 mm and Ø 16 mm
- Ethernet - TCP/IP and MODBUS TCP communication protocols
- Resolution up to 30 bits
- Non-removable end cap – delivered with cable
- ATEX, IECEx, and EAC Ex certified
Related links to "Encoder Ex-Proof EXAG-H-Ethernet - absolute"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Encoder Ex-Proof EXAG-H-Ethernet - absolute"
Electrical Specifications
| Code: | Absolute - Binary |
| Interface: | Ethernet Modbus TCP, TCP/IP, -UDP, MODBUS/TCP |
| Resolution: | Max. 14 bit (16384) revolutions Max. 16 bit (65536) steps per rev. |
| Device Addressing: | Programmable IP address and Network parameters |
| Transmission Rate: | 10/100 Mbit |
| Supply Voltage: | 10 to 30 Vdc (absolute limits) According to EN 50178 |
| Current Consumption: | Max. 230 mA with 10 Vdc Max. 100 mA with 24 Vdc |
| Power Consumption: | Max. 2.5 watts |
| Accuracy of Division: | ±0.0220° (14-16 bit), ±0.0439° (≤13 bit) |
| Electrical Lifetime: | > 10⁵ hours |
| Electrical Protection: | Reverse polarity and over-voltagepeak protection |
| Noise Immunity: | EN61000-6-2 |
| Emitted Interference: | EN 61000-6-4 |
Mechanical Specifications
| Material: | Housing: Aluminum or Stainless Steel Cap: Aluminum or Stainless Steel Shaft: Stainless Steel |
| Weight: | Aluminum: ~ 1600 gr (56,44 oz) Stainless Steel: ~ 3100 gr (109,35 oz) |
| Bearing Life: | > 1.9 x 10¹⁰ revolutions at rated load |
| Shaft Speed: | 6.000 rpm (max.) IP 64 3.000 rpm (max.) IP 65/66/67/68 |
| Starting Torque: | ≤ 0,01 Nm at 25° C (no seal) ≤ 0,03 Nm at 25° C (with seal) |
| Mass Moment of Inertia: | 42 gcm² (5,95 x 10⁻⁴ oz-in-sec²) |
| Shaft Loads: | Axial: 60 N (13,50 lbs) max. Radial: 80 N (17,98 lbs) max. |
Environmental Specifications
| Operating Temp.: | -40° to +70° C |
| Storage Temp.: | -40° to +70° C |
| Shock: | 100 G / 11 ms |
| Vibration: | 10-2000 Hz / 10 G |
| Bump: | 10 G / 16 ms (1000 x 3 axis) |
| Humidity: | 98 % RH without condensation |
| Enclosure Rating: | IP 64 / Nema 4 (approx.) IP 65 / Nema 5 (approx.) IP 66 / Nema 6 (approx.) IP 67 / Nema 6 (approx.) IP 68 (1hour/1 meter) / Nema 6P (approx.) |
Connection Options
| Cable Outlet | Radial |
| Connection Type | Cable |
| Bending Radius | 103 mm |
Certificates
ATEX: Certificate No.: ITS09ATEX16867X II 2 G Ex db IIC T5 Gb II 2 D Ex tb IIIC T100°C
Db -40°C≤ Ta≤ +70°C
IECEx: Certificate No.: IECEx ITS 10.0016X Ex db IIC T5 Gb, Ex tb IIIC T100°C Db -40°C
≤ Ta≤ +70°C
EAC Ex: НАНИО «ЦСВЭ» No. ЕАЭС RU C-DK.AA87.B.00266/19 1Ex db IIC T5 Gb X,
Ex tb IIIC T100°C Db X -40°C<T.amb<+70°C
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Encoder Ex-Proof EXAG-H-Ethernet - absolute"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Encoder Ex-Proof EXAG-H-Ethernet - absolute"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Encoder Ex-Proof EXAG-H-Ethernet - absolute"
CAD-Files: Please request.

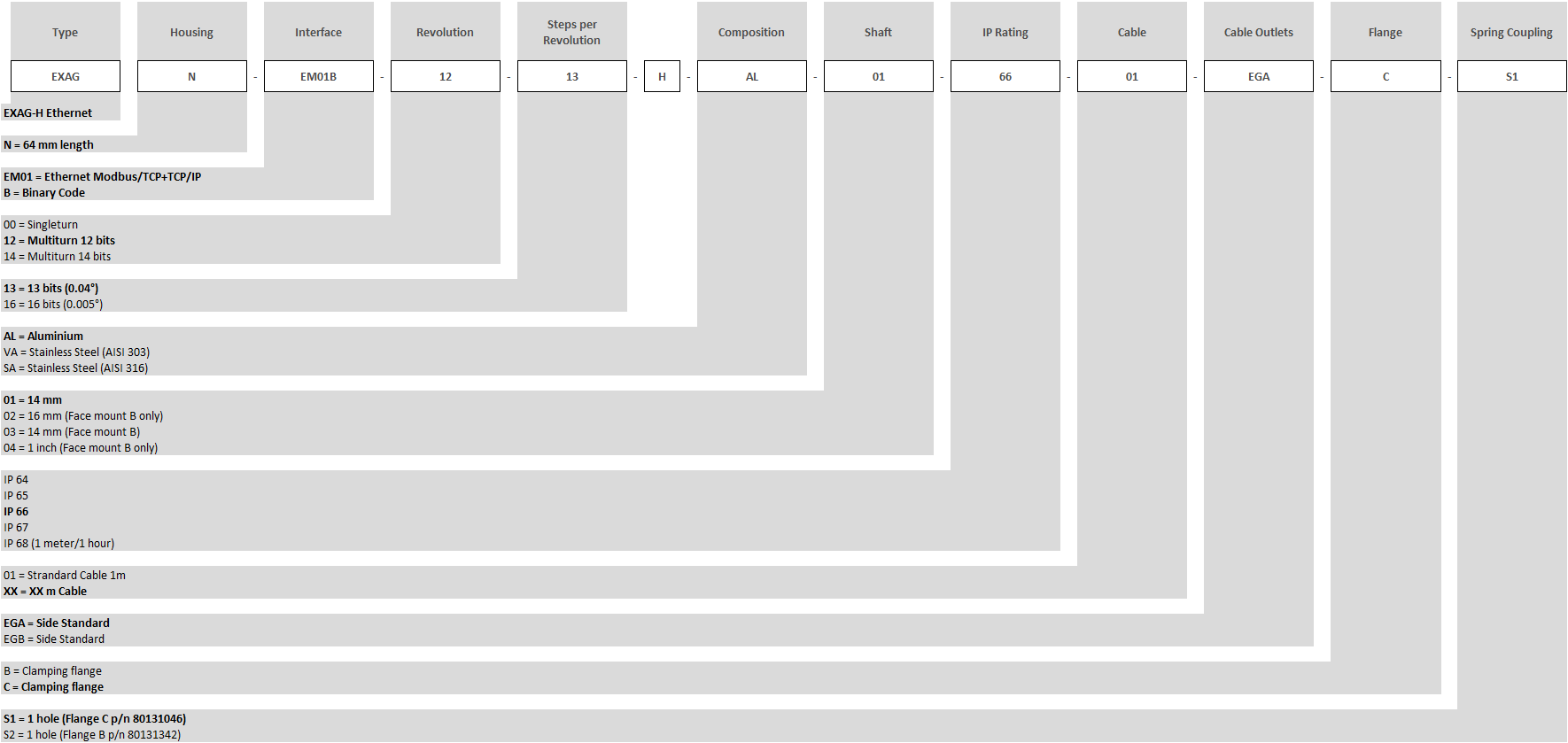

Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...
