Absolute encoder SCA24AV
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: SCA24AV
Mini Encoder with shaft
Characteristics:
Encoder: Ø24 mm... more
Product information "Absolute encoder SCA24AV"
Mini Encoder with shaft
Characteristics:
- Encoder: Ø24 mm
- Strong construction with 2 precision ball bearings, for industrial environments
- Supply Range: 5V &plusm; 10% or 3,3V &plusm; 10%
- With a direct Connection to PLCs, there is a low current consumption.
- IP-Rating: IP64
- Magnetic resistance with SMD-Technology
Related links to "Absolute encoder SCA24AV"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Absolute encoder SCA24AV"
Electrical Specifications
| Encoder Type: | Absolute Magnetic Singleturn |
| Resolution: | 2¹⁰ (1024) points per revolution |
| Supply Voltage: | 15 Vdc min. to 30 Vdc max. |
| Typical Current Consumption: | 25 mA |
| Output Voltage: | 0 – 5 V or 0 – 10 V |
| Accuracy: | +/- 0,3% of full scale *) |
| Output Format: | Full range output over one revolution (360°) or over one half revolution (180°) |
| Output Update Rate: | 2610 updates/sec. ~ 383μsec. per update |
| Electrical Protection: | Reverse polarity and output short circuit protected |
| Noise Immunity: | Tested to EN61000-6-2 : 2005 (industrial environments) Electromagnetic compatibility (EMC) and EN 61000-6-3 : 2007 (residential, commercial, and light-industrial environments) for Electromagnetic compatibility (EMC) |
Mechanical Specifications
| Material: | Housing: Brass Cap: Electroplated Steel Shaft: Brass |
| Weight: | Encoder: ~ 50 gr (1,76 oz) Cable: 50 gr / meter (1,76 oz / meter) |
| Bearing Life: | > 1,9 x 10¹⁰ revolutions at rated load |
| Shaft Speed: | 12.000 rpm (max.) |
| Starting Torque: | < 0,005 Nm (0,708 oz-in) at 25° C |
| Mass Moment of Inertia: | 1,46 gcm² (2,07 x 10⁻⁵ oz-in-sec²) |
| Shaft Loads: | Axial: 20 N (4,5 lbs) max. Radial: 20 N (4,5 lbs) max. |
Environmental Specifications
| Operating Temp.: | -40° to +85° C |
| Storage Temp.: | -40° to +85° C |
| Shock: | 100 G / 11 ms |
| Vibration: | 10-2000 Hz / 10 G |
| Bump: | 10 G / 16 ms (1000 x 3 axis) |
| Humidity: | 98 % RH without condensation |
| Enclosure Rating: | IP 64 / Nema 4 (approx.) |
Connection Options
| Cable: | 4 leads (0,14 mm², 26 AWG) - Standard twisted pairs; shielded |
*) Load impedance should be 75 kΩ or higher for best accuracy.
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Absolute encoder SCA24AV"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Absolute encoder SCA24AV"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Absolute encoder SCA24AV"
CAD-Files: Please request.
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...

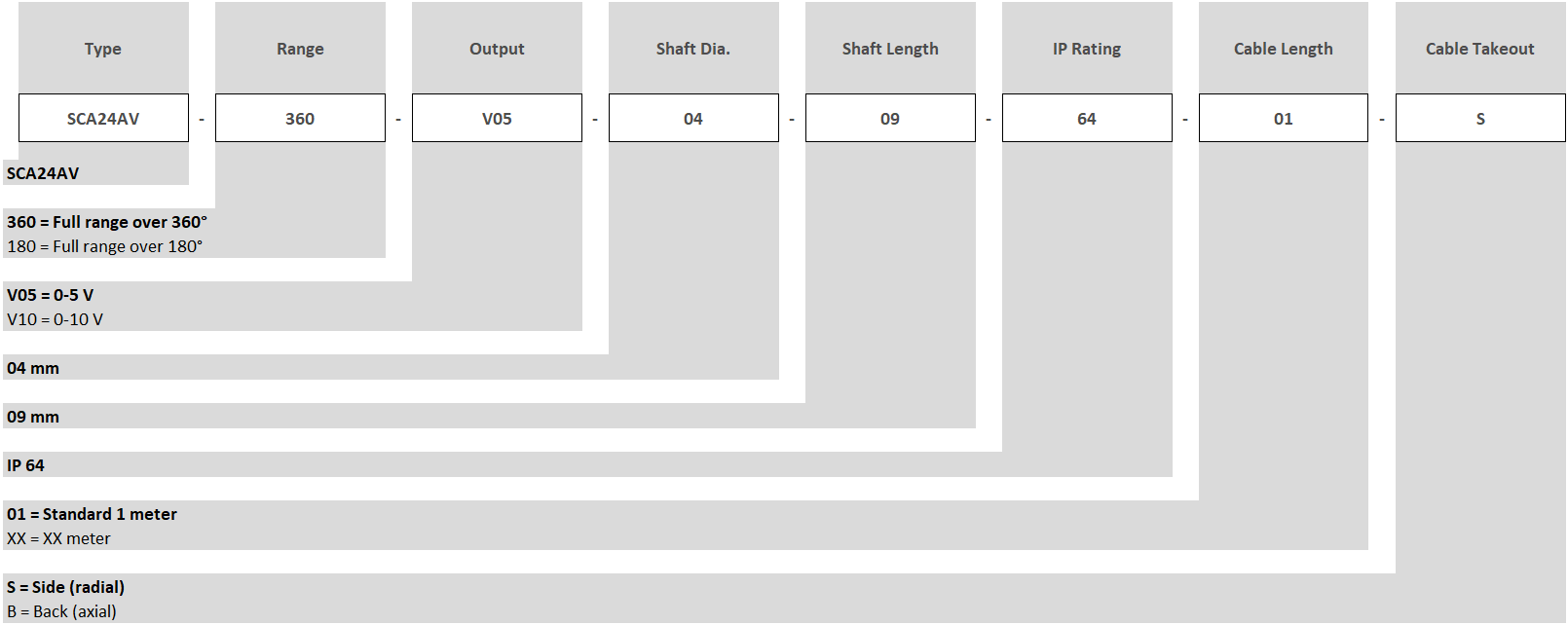

Ordercode "Absolute encoder SCA24AV"
Passendes ZubehörPassendes Zubehör anfragen ...
Accessories "Absolute encoder SCA24AV"
