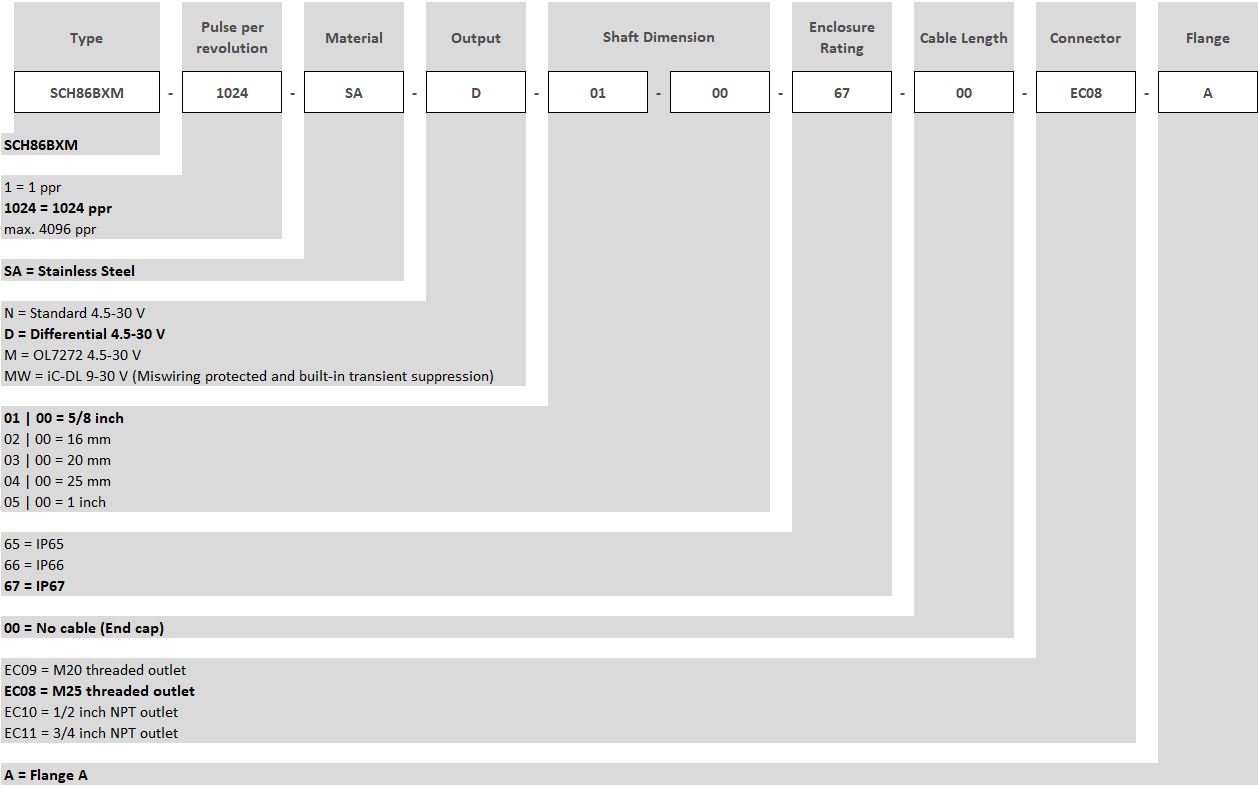

Code	Incremental
Resolution	25, 32, 40, 100, 400, 800, 1024, 2000, 2048, 2500, 3072, 3600, 4096 ppr
Supply Voltage	4.5 Vdc min. to 30 Vdc max.
Output Voltage	Low: 500 mV max. at 10 mA High (Vin - 0.6) at -10 mA (Vin - 1.3) at -25 mA
Output Current	35 mA max. load per output channel
Frequency Response	300 kHz max. 150 kHz max. for MW output
Output Format	Two channel (A,B) quadrature with Index (Z) and optional complementary (A-, B-, Z-) outputs
Phase Sense	A leads B clockwise (CW) from the mounting end of the encoder
Index	Gated with Channels A and B high, 1/4 cycle
Outputs	ASIC Push-pull and Differential OL7272 Push-pull and Differential Line Driver iC-DX Differential Line Driver
Electrical Protection	Output short circuit protected Reverse polarity protected Miswiring protected (MW outputs only)
Noise Immunity	EN61000-6-2:2005 (industrial environments) and EN EN61000-6-3:2007 (residential, commercial, and light-industrial environments)

Material	Housing: Stainless Steel AISI 316 Cap: Stainless Steel AISI 316 Hollow Shaft: Stainless Steel AISI 316
Weight	AISI 316: Approx. 3.750 gr.
Bearing Life	100 thousand hours at rated load
Shaft Speed	3.000 rpm continues (max.) IP66/67
Starting Torque	< 0.1 Nm (14.16 oz-in) at 25°C IP66/67
Mass Moment of Inertia	750 gcm² (10.6 x 10^-3 oz-in-sec²)
Shaft Loads	Axial: 200 N (45 lbf) max. Radial: 200 N (45 lbf) max.

Operating Temperature	-40° to +70°C
Storage Temperature	-40° to +85°C
Shock	100 G / 11 ms
Vibration	10-2.000 Hz /10 G
Bump	10 G / 16 ms (1.000 x 3 axis)
Humidity	98% RH without condensation
Enclosure Rating	IP65 / Nema 4 (approx.) IP66 / Nema 6 (approx.) option IP67 / Nema 6 (approx.) option

ATEX	Certificate No.: IST 09 ATEX 16846X I M2 Ex db I Mb, II 2 G Ex db IIC T5 Gb, II 2 D Ex tb IIIC T100°C Db -40°C < Tamb < +70°C
IECEx	Certifcate No.: IECEx IST 10.0014X Ex db I Mb, Ex db IIC T5 Gb, Ex tb IIIC T100°C Db -40°C < Tamb < +70°C
EAC Ex	Certifcate No.: НАНИО «ЦСВЭ» No. БАЭС RU С-DК.АА87.В.00266/19 PB Ex db I Mb X, -40°C<T.amb<+70°C
