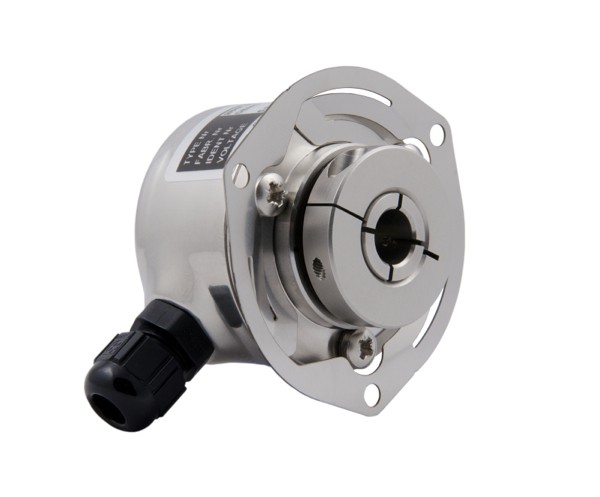

Encoder - Incremental SCH50IF-SR
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: SCH50IF-SR
Characteristics:
Shaft Encoder: Ø50 mm
Shaft: Ø8 mm to Ø16 mm ... more
Product information "Encoder - Incremental SCH50IF-SR"
Characteristics:
- Shaft Encoder: Ø50 mm
- Shaft: Ø8 mm to Ø16 mm
- Stainless Steel AISI 303
- Up to 9.000 ppr
- IP67
Related links to "Encoder - Incremental SCH50IF-SR"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Encoder - Incremental SCH50IF-SR"
Electrical Specifications
Code | Incremental |
Resolution | 1 to 9.000 ppr (pulses per revolution) |
Supply Voltage | 4.5 Vdc min. to 30 Vdc max. ** (35 mA max. - no load) |
Output Voltage | Low: 500 mV max. at 10 mA High (Vin - 0.6) at -10 mA (Vin - 1.3) at -25 mA |
Output Current | 30 mA max. load ** per output channel |
Frequency Response | 300 kHz max. ** |
Output Format | Two channel (A,B) quadrature with Index (Z) and optional complementary (A-, B-, Z-) outputs |
Phase Sense | A leads B clockwise (CW) from the mounting end of the encoder |
Index | Gated with Channels A and B high |
Accuracy | +/- 0.8 arc-min |
Outputs | ASIC Push pull and Differential OL7272 Push pull and Differential Line Driver 26C31 Differential Line Driver 5 V output (with 5 V input) |
Electrical Protection | Output short circuit protected Reverse polarity protected |
Noise Immunity | Tested to EN61000-6-2 : 2005 (industrial environments) Electromagnetic compatibility (EMC) and EN 61000-6-3 : 2007 (residential, commercial, and light- industrial environments) for Electromagnetic compatibility (EMC) |
Mechanical Specifications
Material | Housing: Stainless Steel AISI 303 Cap: Stainless Steel AISI 303 Hollow Shaft: Stainless Steel AISI 303 |
Weight | Encoder: Approx. 245 gr (8.64 oz) Cable: 60 gr / meter (2.12 oz / meter) |
Bearing Life | > 1.9 x 1010 revolutions at rated load |
Shaft Speed | 6.000 rpm (max.) |
Starting Torque | < 0.01 Nm (1,42 oz-in) at 25°C |
Mass Moment of Inertia | 2.0 gcm2 (2.83 x 10-5 oz-in-sec2) |
Shaft Loads | Axial: 20 N (4.5 lbs) max. Radial: 20 N (4.5 lbs) max. |
Environmental Specifications
Operating Temperature | -40° to +85°C |
Storage Temperature | -40° to +85°C |
Shock | 100 G / 11 ms |
Vibration | 10-2.000 Hz /10 G |
Bump | 10 G / 16 ms (1.000 x 3 axis) |
Humidity | 98% RH without condensation |
Enclosure Rating | IP67 / Nema 6 (approx.) |
Connection Options
Cable | 8 leads (0,14 mm2, 26 AWG) twisted pairs; shielded |
Cable Glands | - |
Connectors | 9-pin M23 - not stainless steel 12-pin M23 - not stainless steel |
** = It is recommended user, not to combine max. values for all 3 paramteres
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Encoder - Incremental SCH50IF-SR"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Encoder - Incremental SCH50IF-SR"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Encoder - Incremental SCH50IF-SR"
CAD-Files: Please request.
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...
Ordercode "Encoder - Incremental SCH50IF-SR"
Passendes ZubehörPassendes Zubehör anfragen ...
Accessories "Encoder - Incremental SCH50IF-SR"
