Encoder - Incremental SCH58F
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: SCH58F
Characteristics:
Shaft Encoder: Ø58 mm
Shaft: Ø3/8 inch to Ø5/8... more
Product information "Encoder - Incremental SCH58F"
Characteristics:
- Shaft Encoder: Ø58 mm
- Shaft: Ø3/8 inch to Ø5/8 inch
- Up to 9.000 ppr
- IP65 (IP66 option)
- With 6, 7 or 10 Pin Mil Connector
Related links to "Encoder - Incremental SCH58F"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Encoder - Incremental SCH58F"
Electrical Specifications
| Code | Incremental |
| Resolution | 1 to 9.000 ppr (pulses per revolution) |
| Supply Voltage | 4.5 Vdc min. to 30 Vdc max. ** (45 mA max. - no load) |
| Output Voltage | Low: 500 mV max. at 10 mA High (Vin - 0.6) at -10 mA (Vin - 1.3) at -25 mA |
| Output Current | 30 mA max. load ** per output channel |
| Frequency Response | 300 kHz max. ** |
| Output Format | Two channel (A,B) quadrature with Index (Z) and optional complementary (A-, B-, Z-) outputs |
| Phase Sense | A leads B clockwise (CW) from the mounting end of the encoder |
| Index | Gated with Channels A and B high |
| Accuracy | +/- 0.8 arc-min |
| Outputs | ASIC Push-pull and Differential OL7272 Push-pull and Differential Line Driver 26C31 Differential Line Driver 5 V output (with 5 V input) |
| Electrical Protection | Output short circuit protected Reverse polarity protected |
| Noise Immunity | EN61000-6-2:2005 (industrial environments) Electromagentic compability (EMC) EN61000-6-3:2007 (residential, commercial, and light-industrial environments) for Electrmagentic compability (EMC) |
Mechanical Specifications
| Material | Housing: Aluminium Cap: Aluminium Shaft: Brass |
| Weight | Encoder: ~ 320 gr (11.29 oz) |
| Bearing Life | > 1.9 x 1010 revolutions at rated load |
| Shaft Speed | 4.500 rpm (max. sustained) IP65 3.000 rpm (max. sustaind) IP66 |
| Starting Torque | < 0.02 Nm (2.83 oz-in) at 25°C |
| Mass Moment of Inertia | 107 gcm2 (1.5 x 10-3 oz-in-sec2) |
| Shaft Loads | Axial: 50 N (11.24 lbs) max. Radial: 50 N (11.24 lbs) max. |
Environmental Specifications
| Operating Temperature | -40° to +85°C |
| Storage Temperature | -40° to +85°C |
| Shock | 100 G / 11 ms |
| Vibration | 10-2.000 Hz /10 G |
| Bump | 10 G / 16 ms (1.000 x 3 axis) |
| Humidity | 98% RH without condensation |
| Enclosure Rating | IP65 / Nema 5 (approx.) |
Connection Options
| Cable | - |
| Cable Glands | - |
| Connectors | 6-pin Mil radial 7-pin Mil radial 10-pin Mil radial |
** = It is recommended user, not to combine max. values for all 3 paramteres
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Encoder - Incremental SCH58F"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Encoder - Incremental SCH58F"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Encoder - Incremental SCH58F"
CAD-Files: Please request.
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...

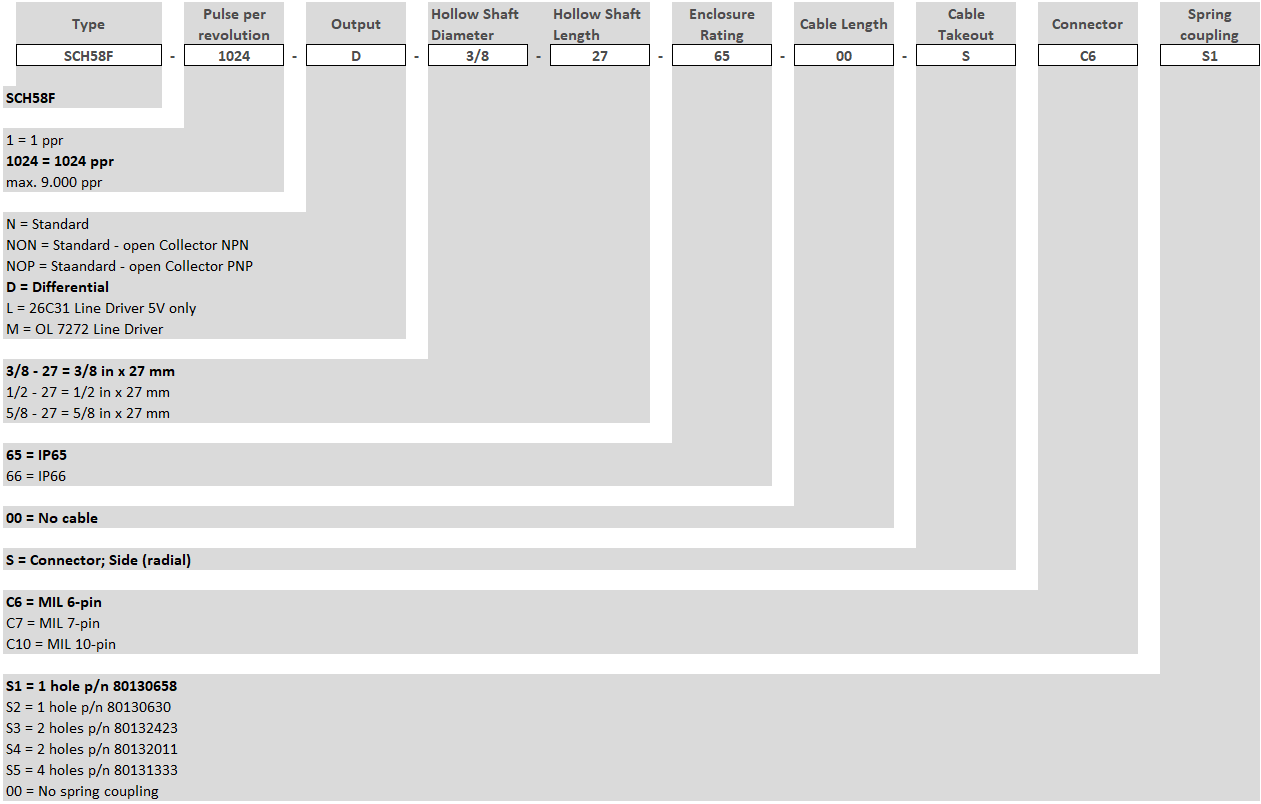

Ordercode "Encoder - Incremental SCH58F"
