ASR Flexible Shaft

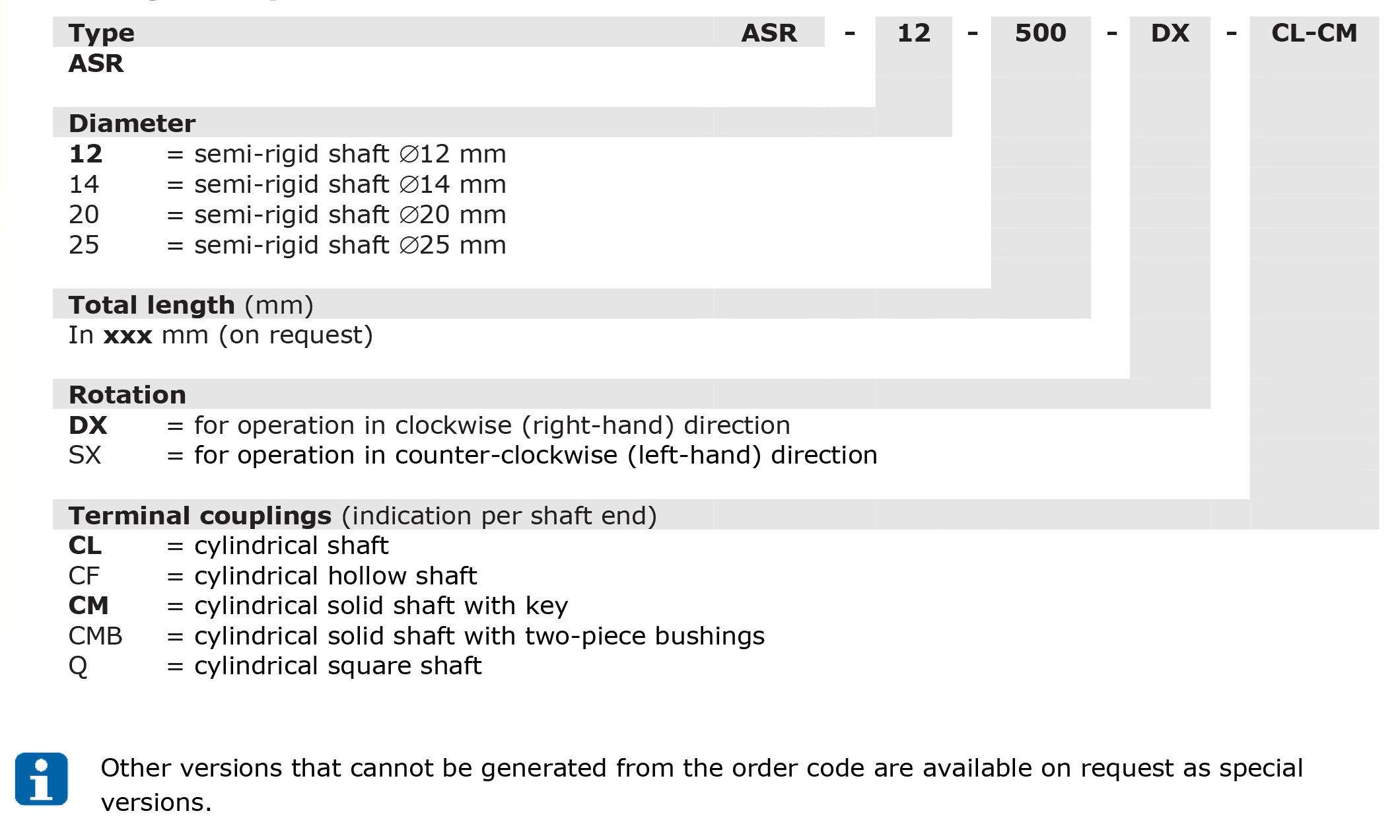

Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: ASR
Flexible shafts Type ASR provide an economical and practical solution to transfer the rotary movement between two aligned elements ensuring an optimal and long-lasting efficiency of motion transmission in case of limited misalignments due to construction or installation.
• Offers high precision for the transmission of rotary movement
• Simple installation without the need of further supports
• Compact dimensions for limited space requirements
• Robust and highly reliable, not subject to wear and maintenance
• Excellent compensation of misalignments, without backlash
• Couplings made of stainless steel AISI 303
• Aluminium protective cover
Flexibility and minimum bending radius are important factors especially if the shaft is exposed to severe bending during its use.
-> It is necessary to make sure that the lowest bending radius applied to the transmission is greater than its minimum radius of curvature. If during use the shaft reaches a bending radius which is below the minimum bending radius, the unit can be crushed, deformed or excessively stressed, and thus reduce its strength and / or durability or even cause it to break.
Up to this radius it is possible to bend the shaft during operation without damaging or excessive reduction in its lifetime:
CAD-Files: please request!
