Magnetic sensor IMS1
| Pole Pitch | 1 mm |
| Resolution | 10, 5, 1, 0,5µm |
| Accuracy | up to ±6 µm |
| Measuring length | depending on magnetic tape |
| Interface | Push-Pull, Line Driver |
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: IMS1
Characteristics:
Magnetic sensor for very small measurements... more
Product information "Magnetic sensor IMS1"
Characteristics:
- Magnetic sensor for very small measurements
- Resolutions up to 0.5 µm programmable (Pr) through the serial interface
- Mounting of the magnetic sensor through wide alignment tolerances
- As a cable standard with low friction coefficient and oil resistant
- Protected against inversion of power supply polarity
- IP-Rating: IP67
Related links to "Magnetic sensor IMS1"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Magnetic sensor IMS1"
Mechanical Data
| Material | |
| Housing | Aluminium; die-cast |
| Cable1) | PVC, Ø6,1 (=8-wire) |
| Power Supply | 0,35 mm2 |
| Signals | 0,14 mm2 |
| Length | 2 m (standard) |
| Bending Radius | > 60 mm |
| Weight | 40 g |
| Pole Pitch | 1+1 mm |
| Resolution | 10; 5; 1; 0,5 µm |
| Accuracy | ±6 µm |
| Repeatability | ± 1 Increment |
| Distance Sensor-Magnetic Scale | 0.1 … 0.4 mm (with magnetic scale PM100) |
| Reference Index | C = at constant distance (1 mm) |
| Traversing Speed2) | < 0,6 m/s (resolution: 0,5 µm) |
| < 6 m/s (resolution: 10 µm) | |
| Relative Humidity | 100% |
| Operating Temperature | 0 °C … +50 °C |
| Storage Temperature | -20 °C … +80 °C |
1) PUR cable, cable with reduced section or other length on request
2) The indicated speeds are referred to a maximum frequency of 300 kHz.
Electrial Data
| Power Supply | 5 VDC … 28 VDC ±5% |
| Power Consumption | |
| unload | < 60 mA |
| load | < 140 mA(with 5 V and R = 120 Ω) |
| < 90 mA(with 28 V and R = 1,2 kΩ) | |
| Frequency | < 300 kHz |
| < 500 kHz (on request) | |
| Output | Line Driver |
| Push-Pull | |
| Vibration EN 60068-2-6 | 300 m/s2 [55 … 2.000 Hz] |
| Shock EN 60068-2-27 | 1.000 m/s2 (11 ms) |
| IP-Rating | IP67 |
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Magnetic sensor IMS1"
See the Datasheet
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Magnetic sensor IMS1"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Magnetic sensor IMS1"
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...

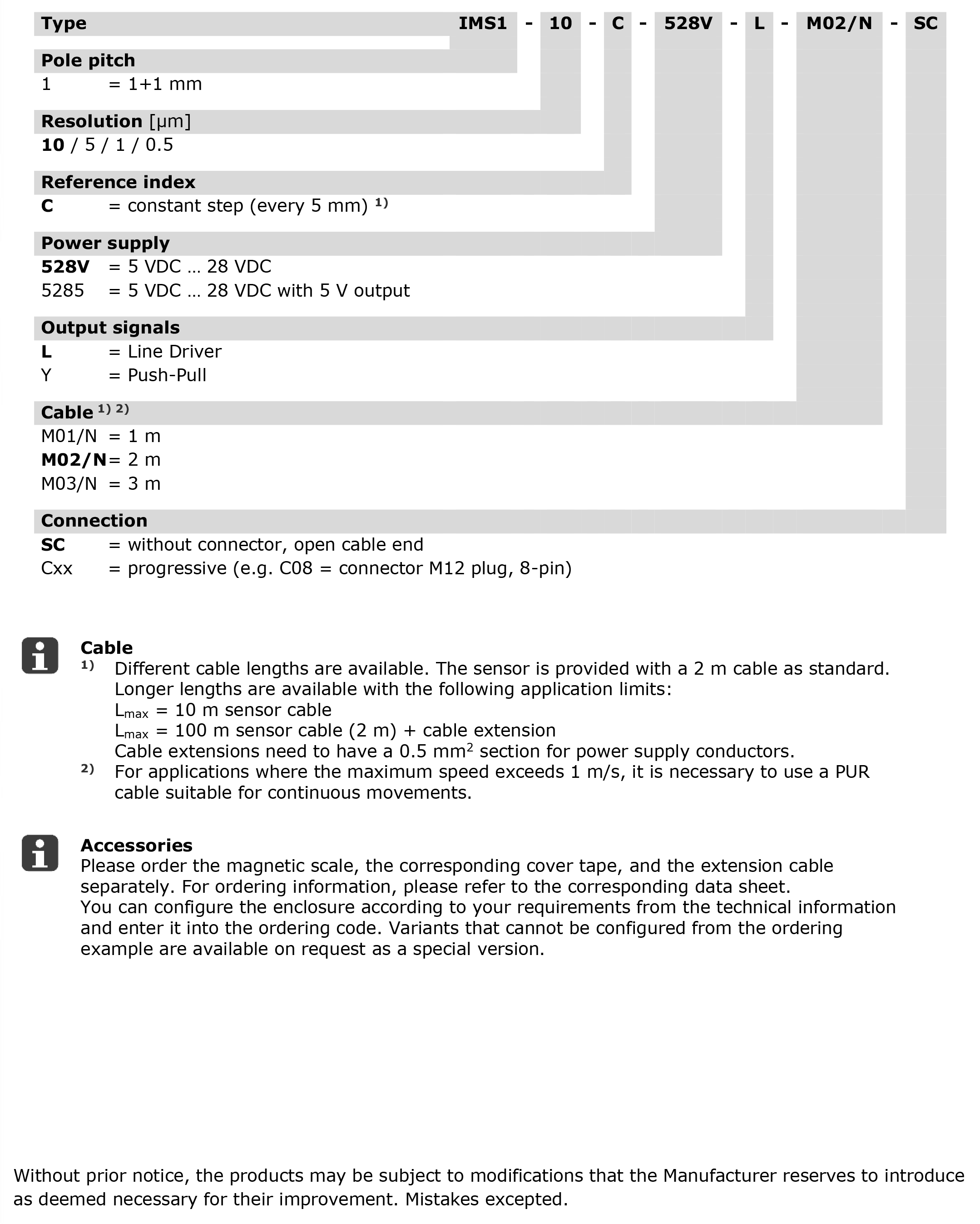

Ordercode "Magnetic sensor IMS1"
Passendes ZubehörPassendes Zubehör anfragen ...
Accessories "Magnetic sensor IMS1"
